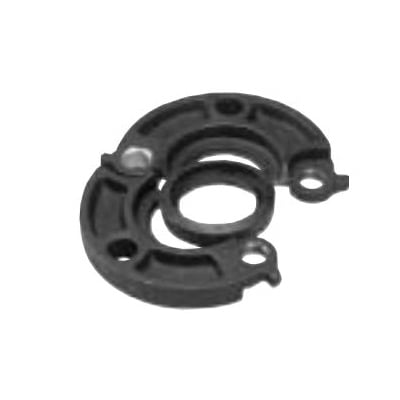

Victaulic L030744GE0 FireLock Style 744 Flange Adapter

Product Description

The Victaulic L030744GE0 is a FireLock Style 744 flange adapter, built to integrate flanged components into grooved pipe systems. This product is made from ductile iron and features a hot-dipped galvanized finish. It complies with ANSI Class 125 and 150 bolt hole patterns.

• Constructed from ductile iron with a durable hot-dipped galvanized finish.
• Hinged design for easier handling and assembly.
• Teeth inside the key shoulder help prevent rotation.

Product Highlights

Designed specifically for fire protection applications, the Victaulic flange adapter allows for the direct incorporation of flanged components into grooved piping systems.

Product Information

Standard Information

• Brand: Victaulic
• Series: 744

Technical Specifications

• Nominal Size: 3 IN
• End Connection 1: Grooved
• End Connection 2: Flanged
• Outside Diameter: 7-1/2 IN
• Thickness: 0.94 in
• Material: Ductile Iron, Rubber
• Material Standard: ASTM A536 Grade 65-45-12
• Pressure Rating: 175 psi
• Application: Fire Protection
• Weight: 4.800 LB
• Number Of Bolts: 4
