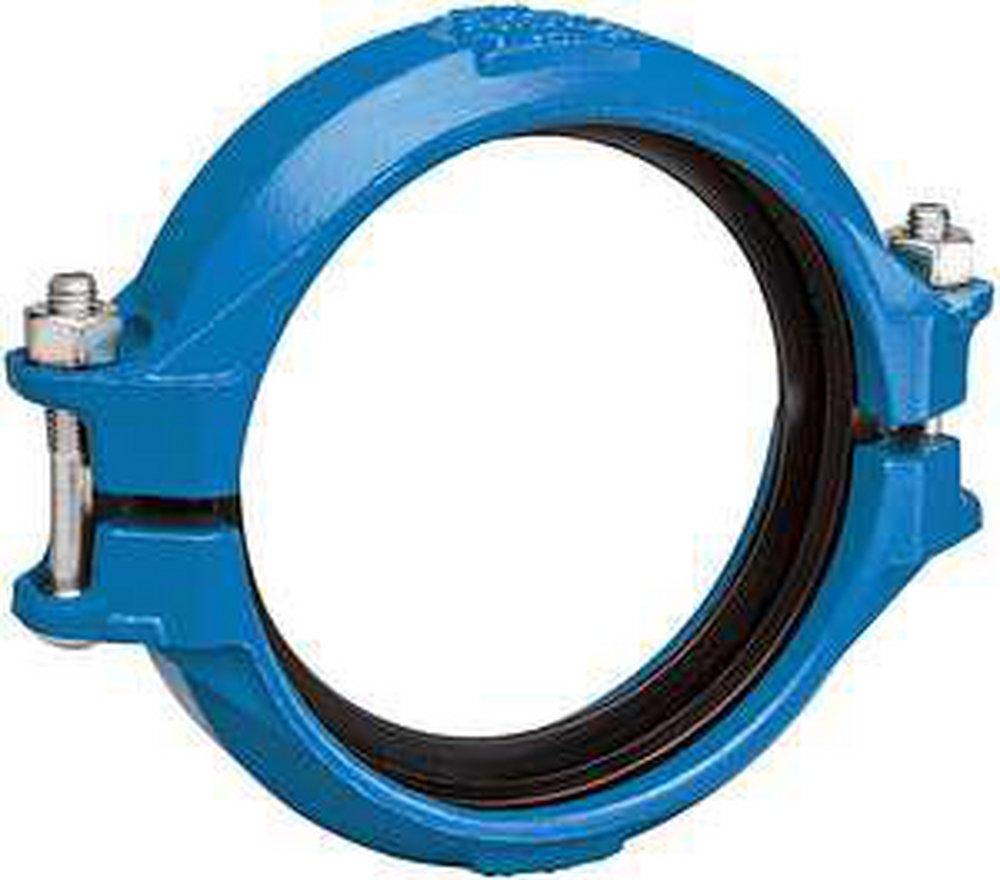

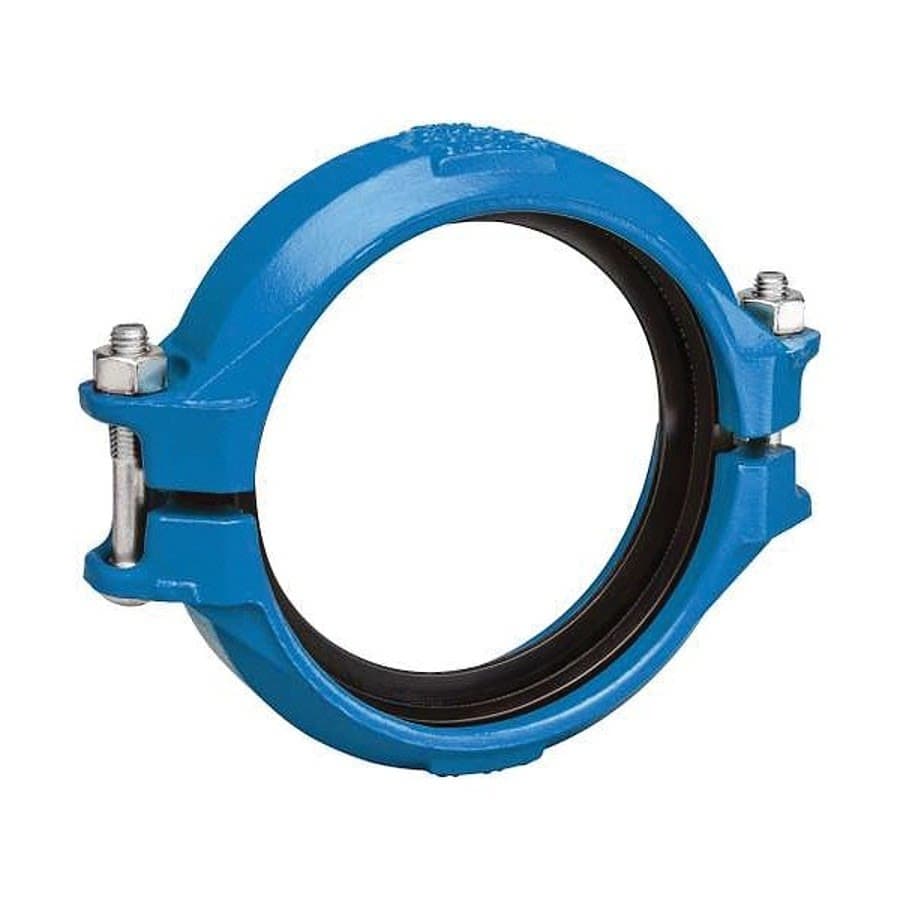

Victaulic L024856HP0 856 Transition Coupling 2-1/2 in

Product Description

The VICTAULIC L024856HP0 856 Transition Coupling is designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic® PGS™-300 groove profile. It provides a direct, single coupling connection for PGS™-300 grooved end CPVC/PVC pipe or fittings to original groove system (OGS) grooved end carbon steel or stainless steel pipe, fittings or valves of the same nominal size.

• Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic® PGS™-300 groove profile
• Utilizes grade P gasket material for improved resistance to typical potable water disinfectants
• Provides a direct, single coupling connection for PGS™-300 grooved end CPVC/PVC pipe or fittings to original groove system (OGS) grooved end carbon steel or stainless steel pipe, fittings or valves of the same nominal size

Product Highlights

The VICTAULIC 856 transition coupling provides a reliable connection between CPVC/PVC pipe and grooved end carbon steel or stainless steel pipe.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L024856HP0
• Country of Origin: Domestic

Technical Specifications

• End Style: Grooved
• Finish: Blue Enamel Coated
• Fitting/Connector Type: Coupling
• Material: Ductile Iron
• Nominal Size: 2-1/2 In
• Series: 856
• Temperature Rating: 0 to 180 deg F
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-449, ASTM A-536 Grade 65-45-12, ASTM A-563 Grade B, ASTM A-563M Class 9, ASTM B-633
• Application: CPVC Pipe, PVC Pipe, Potable Water
• Coating: Blue Enamel
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• FM Approved: No
• Fitting Size 1: 2-1/2
• Fitting Size 2: 2-1/2
• Fitting Sizes: 2-1/2 in
• ISO: ISO 898-1 Class 9.8
• Length: 6-23/100
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - Maximum: 420 psi
• UL Listed: Yes
