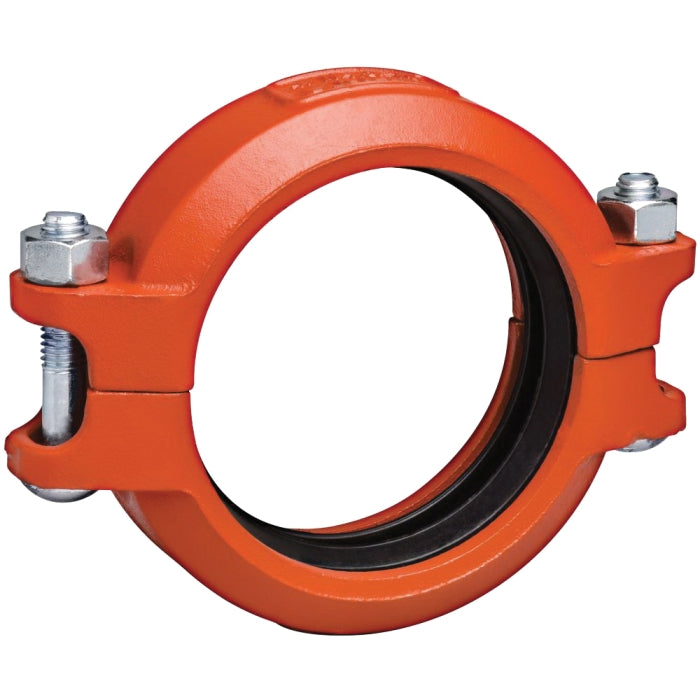

Victaulic L020075PE0 Grooved Flexible Coupling 75 Orange Enamel (2 in)

Product Description

The Victaulic L020075PE0 is a grooved flexible coupling designed for piping systems. This coupling features a connection size of two inches and is constructed from ductile iron with an orange enamel finish.

• Lightweight design for moderate pressure applications
• Suitable for pressures from full vacuum to five hundred psi
• Allows for flexibility and movement in piping systems

Product Highlights

This coupling is ideal for joining standard roll grooved and cut grooved pipes, as well as various fittings and valves.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L020075PE0

Technical Specifications

• Model: 75
• Material: Ductile Iron
• Connection Size: 2 inches
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Maximum End Load: 2215 lb
• Outside Diameter: 2-3/8 inches
• Gasket Type: Grade E EPDM
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
