Product Description

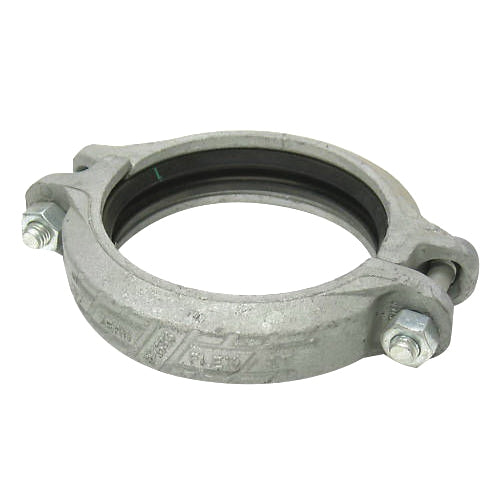

The Victaulic L020007GE0 is a zero-flex hot dipped galvanized ductile iron grooved rigid coupling designed for robust joining of pipes. This coupling accommodates pressures from full vacuum to seven hundred fifty psi, making it suitable for various applications. It features a grade E EPDM gasket and is crafted for use with OGS roll grooved and cut grooved pipe systems.
- Angled bolt pad adds rigidity.
- Supports pressures from full vacuum (twenty-nine point nine in Hg) up to seven hundred fifty psi.
- Meets standards such as ASME B31.1 and NFPA 13.
Product Highlights
This coupling is engineered for reliable connections and strong support in piping systems.
Product Information
Standard Information
-
Brand: Victaulic
-
Model: 07
Technical Specifications
-
Connection Size: 2 in
-
Finish: Hot Dipped Galvanized
-
Material: Ductile Iron
-
Gasket Type: Grade E EPDM
-
Length: 5.78 in
-
Outside Diameter: 2-3/8 in
-
Pressure Rating: 750 psi
-
Maximum End Load: 3320 lb
-
Temperature Rating: -30 to 230 deg F
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
-
Applications: For use with OGS roll grooved pipe and cut grooved pipe, valves, fittings, and accessories
