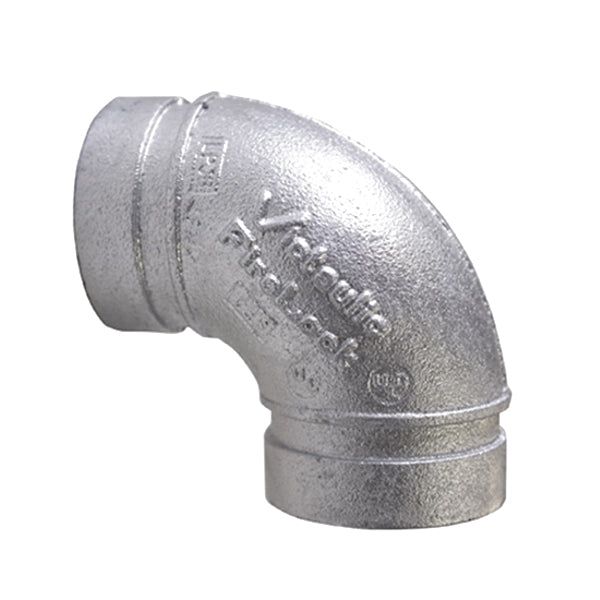

Victaulic F024001G00 Ductile Iron 90 deg Elbow 2-1/2 in FireLock

Product Description

The Victaulic F024001G00 is a 90-degree elbow made from ductile iron and features a hot-dipped galvanized finish. This fitting is designed to connect pipes while providing a change in direction. It is intended for fire protection services and is only to be used with approved Victaulic couplings.

• FireLock full-flow design for smooth water flow.
• Connects pipes and adapts sizes effectively.
• Pressure rating of 365 psi.

Product Highlights

This fitting's CAD-developed design allows for a shorter center-to-end dimension, maintaining flow characteristics similar to standard fittings.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: FireLock

Technical Specifications

• Angle: 90 deg
• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Finish: Hot Dipped Galvanized
• Material: Ductile Iron
• Material Specifications: ASTM A536, Grade 65-45-12
• Model: 001
• Pressure Rating: 365 psi
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved, CE EN 10311 Regulation (EU) no. 305/2011 and CCC certified
• Applications: For use exclusively with Victaulic couplings that have been listed or approved for fire protection services
