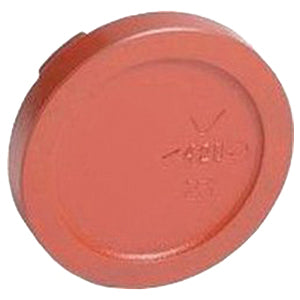

Victaulic F010060P00 Cap 1 in Grooved

Product Description

The Victaulic F010060P00 is a cap designed for use in piping systems. This cap is made of ductile iron and has a grooved connection type. It is ideal for providing a secure seal in piping applications where a fitting is needed to close off an end.

• Connection size of one inch
• Pressure rating of one thousand psi
• Applications include use with Victaulic couplings and valves

Product Highlights

This cap meets various industry standards and is certified for safety and reliability in mechanical fittings.

Product Information

Standard Information

• Brand: Victaulic
• MPN: F010060P00

Technical Specifications

• Connection Size: 1 in
• Connection Type: Grooved
• Finish: Orange Enamel
• Item Name: Cap
• Length: 0.88 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 60
• Pressure Rating: 1000 psi
• Standards/Certifications: cULus listed, CTP, LPCB, VdS, FM approved
• Applications: For use with Victaulic couplings, valves, accessories and pipe which feature ends formed with the Victaulic OGS groove profile
