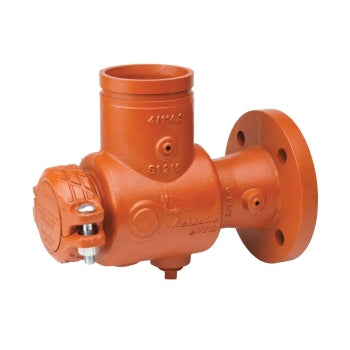

Victaulic CD44731DEN 4 x 3 in. Suction Diffuser

Product Description

The Victaulic CD44731DEN is a four by three inch suction diffuser designed for effective flow management in pumping systems. It adheres to ANSI Class 150 standards and is suitable for various applications, including AGS sizes fourteen to twenty-four. This diffuser allows for installation flexibility, enabling builders to set up at a ninety-degree angle from the pump, optimizing space while safeguarding against cavitation.

• Compatible with Australian Standard Table E and JIS 10KS
• Supports pressures up to three hundred psi
• Ideal for spaces requiring compact equipment arrangements

Product Highlights

This suction diffuser is a critical component that enhances the performance and longevity of pumps.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VCD44731DEN

Technical Specifications

• Size: 4 x 3 inches
• Pressure Rating: 300 psi / 2068 kPa / 21 bar
• Standards: ANSI Class 150, PN10/16, GB, JIS 10KS
• Installation Angle: 90 degrees
• Compatible Sizes: 3 to 12 inches for standard models
• AGS Sizes: 14 to 24 inches available
