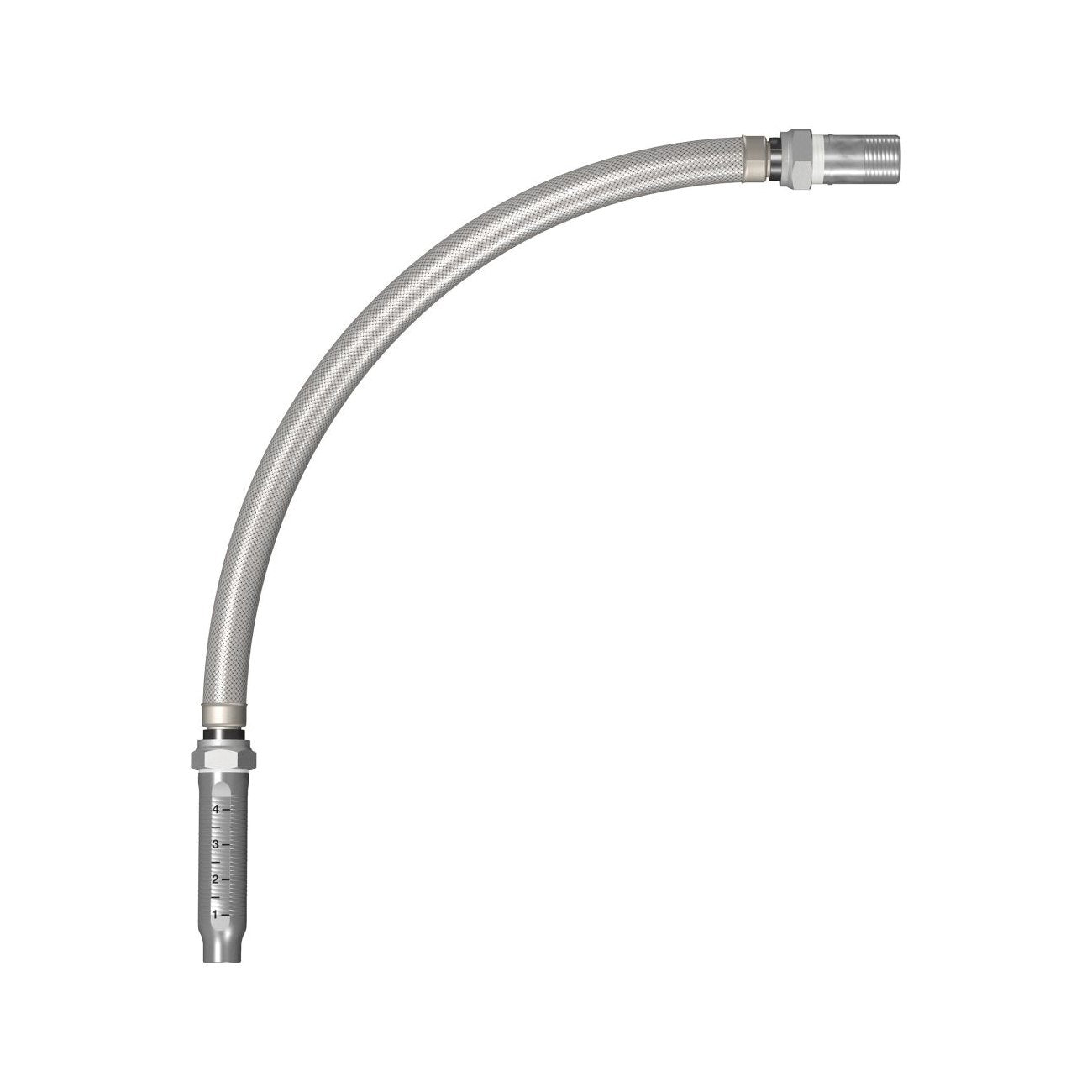

Victaulic A31TAQBBA1 VicFlex AH1 Braided Hose with Bracket

Product Description

The Victaulic A31TAQBBA1 VicFlex AH1 is a braided hose designed for flexibility and durability. This thirty-one inch hose is made from stainless steel. It features a zinc-plated carbon steel bracket for secure mounting. The hose includes a one-inch BSPT connection and fits a three-quarter inch sprinkler size, making it versatile for various systems.

• Stainless steel braided construction provides flexibility
• Carbon steel bracket included for easy installation
• Meets approvals for FM, cULus, VdS, and LPCB

Product Highlights

This hose is designed to withstand pressures up to 232 psi and temperatures of 225 degrees Fahrenheit. It includes a straight reducer with a length of five and three-quarter inches. The minimum bending radius is three inches for cULus and VdS approvals or seven inches for FM compliance.

Product Information

Standard Information

• Brand: Victaulic
• Material: Stainless Steel

Technical Specifications

• Pressure Rating: 232 psi
• Temperature Rating: 225 deg F
• Connection Size: 1 in
• Connection Type: BSPT
• Hose Length: 31 in
• Series: AH1
• Type: Hose
• Sprinkler Size: 3/4 in
