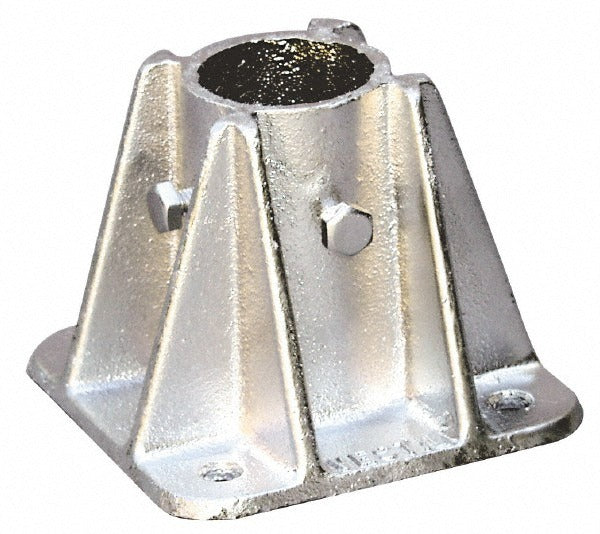

Vestil VDKR-P101 Single Socket Rail Mount Kit

Product Description

The VESTIL VDKR-P101 is a single socket rail mount kit designed to secure pipe or tube to a rail or structural surface in industrial and commercial material handling applications. The mounting plate measures 5 inches wide by 5 inches long, and the socket accepts pipe or tube with an outside diameter of 1-5/8 inches. This hardware is typically installed by maintenance technicians, millwrights, or facilities personnel working on equipment rails, safety barriers, or support structures. It is sold as an individual replacement component, making it suitable for repairs or custom fabrication projects.

The VDKR-P101 is suited for applications where pipe or tube sections must be anchored to a rail-mounted surface. Common uses include safety rail assemblies, equipment guards, and structural support frameworks in warehouses, loading docks, and light manufacturing environments. The single socket configuration provides a clean, secure connection point for a single run of 1-5/8 inch OD pipe or tube without requiring additional hardware beyond standard fasteners.

Key Features

• Single socket design accepts 1-5/8 inch outside diameter pipe or tube
• Mounting plate dimensions of 5 inches by 5 inches provide a stable fastening footprint
• Sold individually as a replacement or fabrication component
• Compatible with standard rail mounting configurations in industrial settings

Compatibility

Designed as a replacement or supplemental component for rail mount systems accepting 1-5/8 inch OD pipe or tube with a 5 inch by 5 inch mounting plate footprint.

Installation Notes

Installation is typically performed by maintenance or facilities technicians using standard hand tools. Ensure the mounting surface is structurally adequate to support the intended load before fastening the plate. Verify that all connected pipe or tube sections are properly secured and that the assembly complies with applicable facility safety and building codes before returning the system to service.
