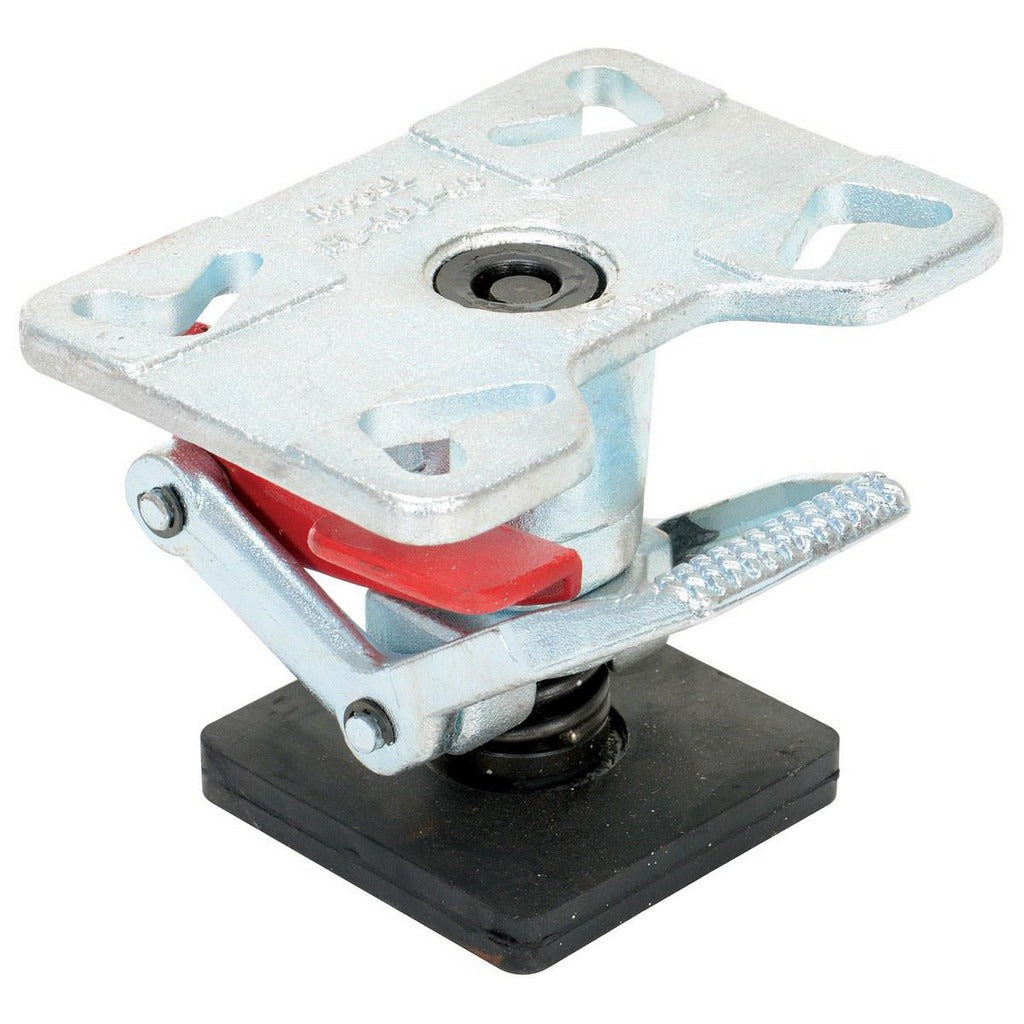

Vestil FL-ADJ-46 Floor Lock Steel Bottom Mount

Product Description

The VESTIL FL-ADJ-46 is a heavy-duty floor lock designed to immobilize carts, workstations, and mobile equipment on flat floor surfaces. The unit mounts to the underside of a cart frame via a 0.38-inch attaching bolt and engages the floor with downward foot pressure, locking the equipment in place during use. Constructed from steel with a silver finish, this floor lock features a top plate measuring 4.5 x 6.5 inches and a top plate thickness of 0.38 inches. Maximum installed height is 8 inches, making it compatible with standard cart leg clearances. Installation and removal require no tools during operation, and the unit weighs 9 pounds.

This floor lock is suited for light industrial, warehouse, and shop environments where mobile carts or equipment tables need to be temporarily fixed in position. Typical applications include assembly workstations, tool carts, service benches, and material handling equipment that must remain stationary during loading or work operations. The bottom-mount configuration allows the lock to be installed directly to the undercarriage of a cart or equipment base without modifying the work surface.

Key Features

• Steel construction provides durability in industrial and warehouse environments
• Top plate size of 4.5 x 6.5 inches offers a broad mounting footprint for secure attachment
• Maximum height of 8 inches accommodates standard mobile cart leg clearances
• 0.38-inch attaching bolt size for straightforward frame mounting
• Top plate thickness of 0.38 inches adds structural rigidity at the mount point
• Bottom-mount location keeps the locking mechanism clear of the work surface

Compatibility

Designed as a bottom-mount floor lock for mobile carts, workstations, and similar wheeled equipment with undercarriage clearance up to 8 inches and frame structures compatible with a 0.38-inch attaching bolt.

Installation Notes

Installation is performed by a maintenance technician or qualified fabricator using standard hand tools. The attaching bolt should be secured to the cart frame undercarriage before placing the equipment in its intended service location. Ensure the mounting surface is structurally sound and free of debris before fastening. Verify that floor contact surface is level and clear of obstructions that could prevent full lock engagement.
