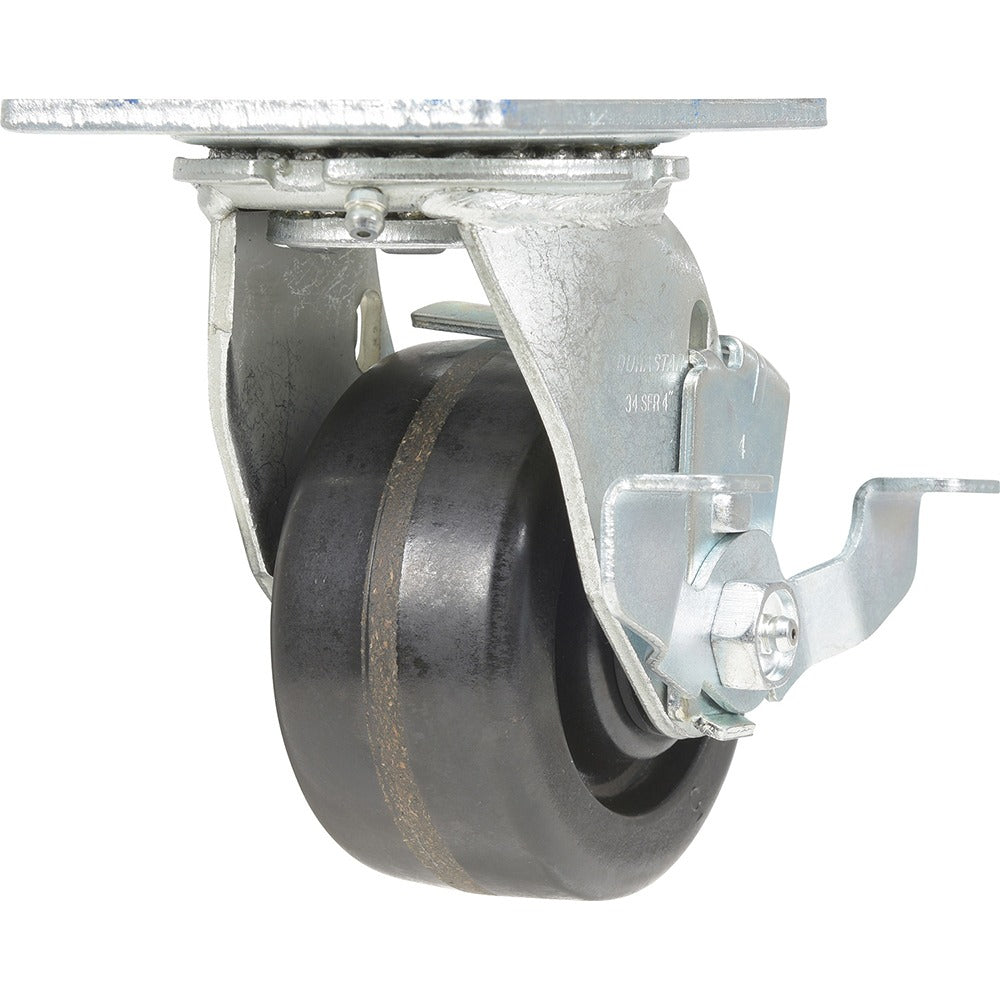

Vestil CST-VE-4X2PH-SWB Swivel Caster 800 Lb Phenolic

Product Description

The VESTIL CST-VE-4X2PH-SWB is a heavy-duty swivel caster built for industrial and commercial material handling applications. It features a 4-inch diameter phenolic wheel, 2 inches wide, rated to carry 800 pounds of load capacity. The roller bearing design supports smooth rolling under load, while the double ball raceway swivel section allows full 360-degree rotation for easy maneuvering. Overall height is 5.5 inches. The wheel has a 90 Shore D durometer rating, making it a hard, non-marking option suited for use on hard floor surfaces. A Zerk fitting at both the axle and raceway allows for routine greasing to extend service life.

This caster is designed for use in warehouses, manufacturing facilities, workshops, and similar industrial environments where carts, dollies, workbenches, or equipment stands require a reliable swivel caster with bolt-hole mounting. The with-holes mount style makes it a direct bolt-on replacement or new installation on platforms and frames with pre-drilled mounting patterns. Its phenolic wheel material performs well on concrete, tile, and other hard surfaces, and it is part of the CST-VE-PH series from VESTIL.

Key Features

• 800 lb load capacity supports demanding industrial use
• 4-inch diameter phenolic wheel with 90 Shore D durometer for hard-surface rolling
• Roller bearing with double ball raceway swivel for smooth, low-effort steering
• Zerk grease fittings at axle and raceway for field-serviceable lubrication
• Bolt-hole mount style for straightforward installation on standard frames
• 1-year manufacturer warranty

Compatibility

Part of the VESTIL CST-VE-PH series. Designed as a bolt-on swivel caster for industrial carts, dollies, and equipment stands using a with-holes top-plate mount configuration.

Installation Notes

Installation is typically performed by maintenance technicians or material handling equipment service personnel. Power down or de-energize any powered equipment before servicing casters. Secure the frame or platform on a stable surface before removing old casters or installing new ones. Verify that the mounting hole pattern on the frame matches the caster top plate before fastening, and torque all mounting hardware per the frame manufacturer specifications. Apply grease through the Zerk fittings at initial installation and at regular service intervals per facility maintenance schedules.
