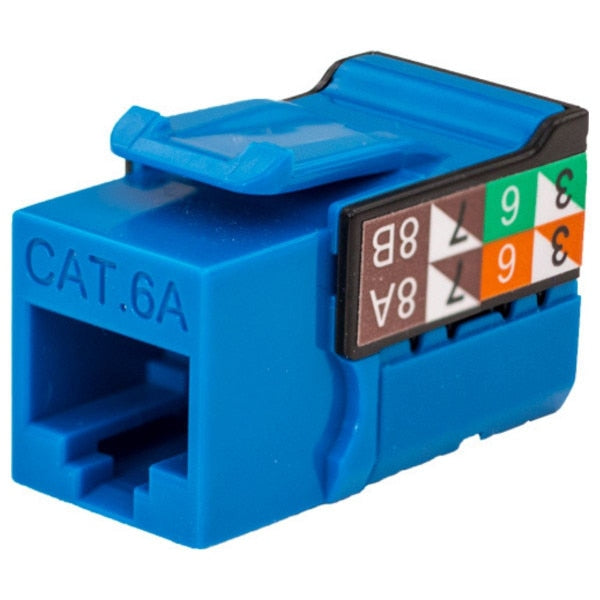

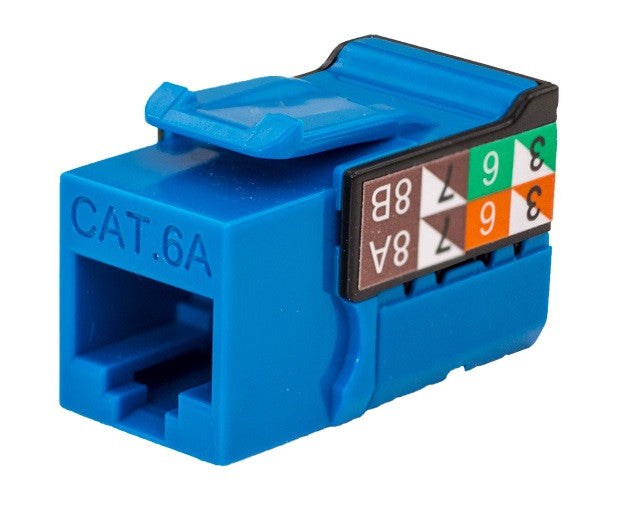

Vertical Cable 353-V2814/C6ABL CAT6A Data Grade Keystone U-Jack

Product Description

The Vertical Cable 353-V2814/C6ABL CAT6A data grade keystone jack is designed for high-performance structured cabling and supports 10 Gbps Ethernet applications. It offers full PoE Type 4 capability for modern network environments. It supports both T568A and T568B wiring schemes and is compatible with standard 110 style termination tools.

• Supports PoE 802.3af, 802.3at, 802.3bt (type 4)
• Improved PCB Design and IDC Geometry provide superior performance
• Supports solid 23 AWG and 24 AWG cable

Product Highlights

This keystone jack features gold-plated phosphor bronze terminals, UL94V0 rated housing, and supports both T568A and T568B wiring.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 353-V2814/C6ABL

Technical Specifications

• Cat 6A / Category 6A: Yes
• Contacts: 8 Conductor solder-plated phosphor bronze contacts, 110-IDC Contacts (Terminal Block)
• ANSI/TIA: 568C.2, ETL/UL Listed
• ISO: 11801, EN 50173-1 Class EA Specification
• Housing: UL94V-0 Thermoplastic ABS Housing
• PoE Support: Supports PoE 802.3af, 802.3at, 802.3bt (type 4)
• Compliance: UL Listed, ETL Listed, RoHS Compliant
