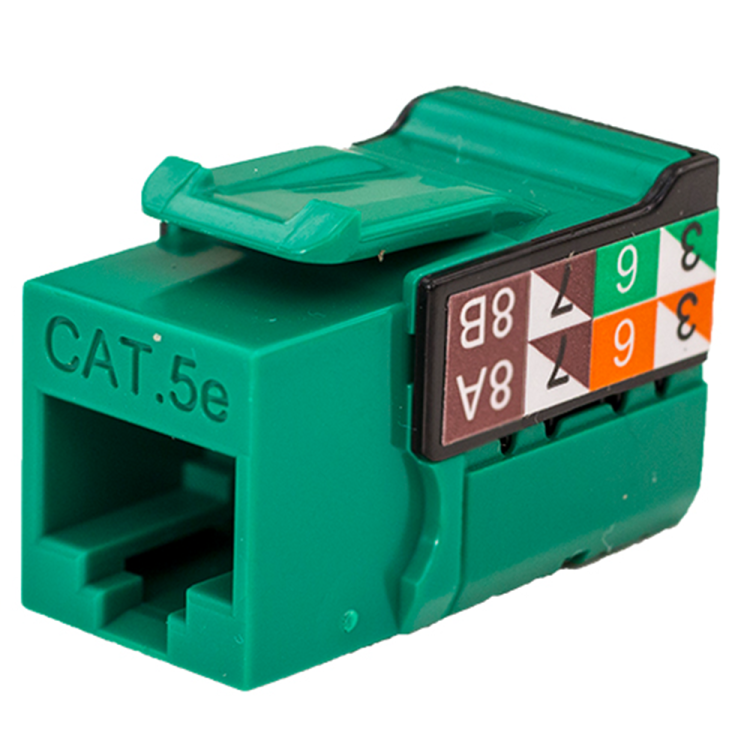

Vertical Cable 351-V2615/GR Cat5E Data Grade Keystone Jack

Product Description

The Vertical Cable 351-V2615/GR is a CAT5E data grade keystone jack. It is color coded for T568A and T568B standards and meets ANSI/TIA-568.2-D and ANSI/TIA 1096-A. This keystone jack supports PoE 802.3af, 802.3at, and 802.3bt. It fits most standard keystone wall plates and patch panels.

• Color Coded for T568A and T568B standards
• Meets and Exceeds ANSI/TIA-568.2-D, ANSI/TIA 1096-A
• Supports PoE 802.3af, 802.3at, 802.3bt

Product Highlights

The Vertical Cable CAT5E keystone jack is designed for reliable data-grade performance in commercial, residential, and low-voltage installations.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 351-V2615/GR

Technical Specifications

• SKU: 351-V2615/GR
• Positions: 8
• Conductors: 8
• Contacts: 50µ Gold Plated Brass
• Compliance: ANSI/TIA 568-C.2 Compliant, ETL/UL listed, RoHS
• PoE Support: Supports PoE 802.3af, 802.3at, 802.3bt (type 4)
• Form Factor: Snap-in keystone
• Performance: Meets TIA/EIA-568-C.2 performance requirements for data-grade applications
• Design: Compact design for high-density installations in shallow gang boxes and patch panels
• Housing: Color-coded housing
• Category 5e (Cat5e) performance: Yes
• Supports Fast Ethernet and Gigabit Ethernet: Yes
• Rated up to: 100 MHz bandwidth
• Reliable IDC termination: For secure connections
• Compatible with: Standard keystone openings
