Vertical Cable 209-2317 Audio Cable 16AWG 1000 ft

Product Description

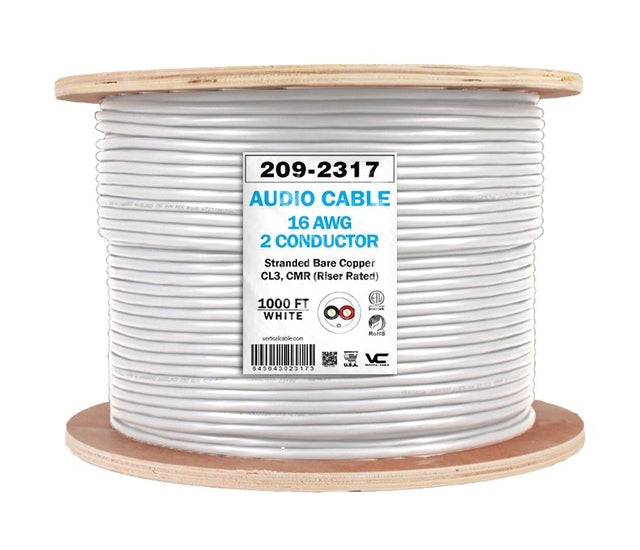

The VERTICAL CABLE 209-2317 is an audio cable with a PVC jacket, 16AWG, and 2 conductors. It features stranded conductors for added flexibility and sequential length markings on the jacket. This cable is oxygen-free stranded bare copper and is CL3 rated. Packaged as a 1000ft spool.

• Oxygen-Free Stranded Bare Copper
• Stranded Conductors Provide Additional Flexibility
• Sequential Length Markings on Jacket

Product Highlights

16 AWG audio cable with PVC jacket, stranded conductors, and sequential length markings, ideal for in-wall speaker applications.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 209-2317

Technical Specifications

• Size: 16 AWG x 2C
• Material: Oxygen-Free Stranded Bare Copper
• Insulation Material: PVC
• Cold Bend Test: -20,ºC, 4 hours No Cracking
• Flame Retardant Test: CMR CL3

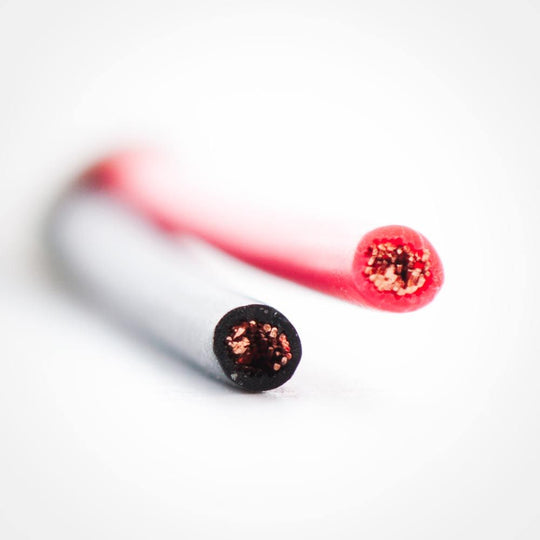

• 2 Core Stranded Oxygen-free 16AWG Copper Wire Conductors: 65 Strands, 0.16mm Strand Diameter
• Black and Red PVC Insulation: 0.31mm Average Thickness, 0.27mm Minimum Point Thickness, 2.10mm Diameter
• Assembly Diameter: 4.10mm
• White PVC Jacket: 0.50mm Average Thickness, 0.45mm Minimum Point Thickness, 5.10mm Outer Diameter
• 150D Nylon Ripcord:
• Rated Temperature: 75ºC
• Rating: 30V
• Standards: ETL, CMR, CL3
• Compliant: RoHS
