Product Description

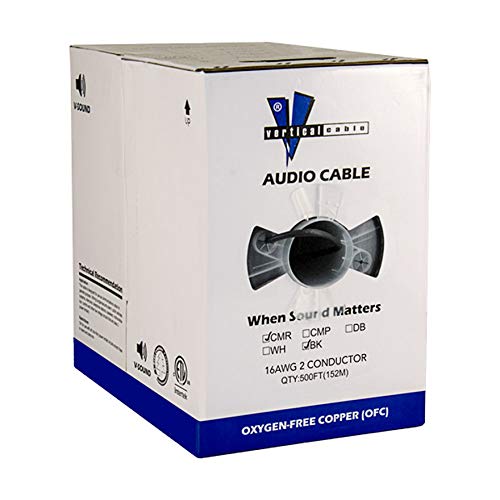

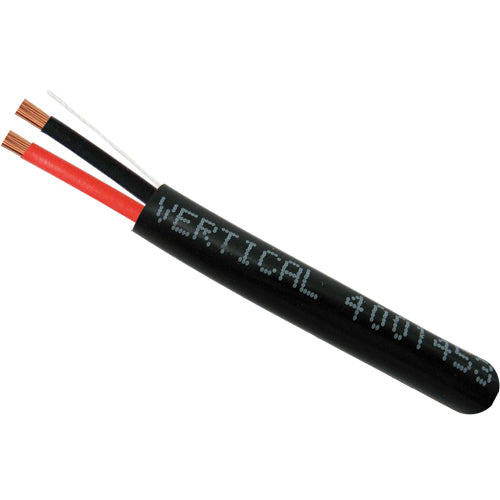

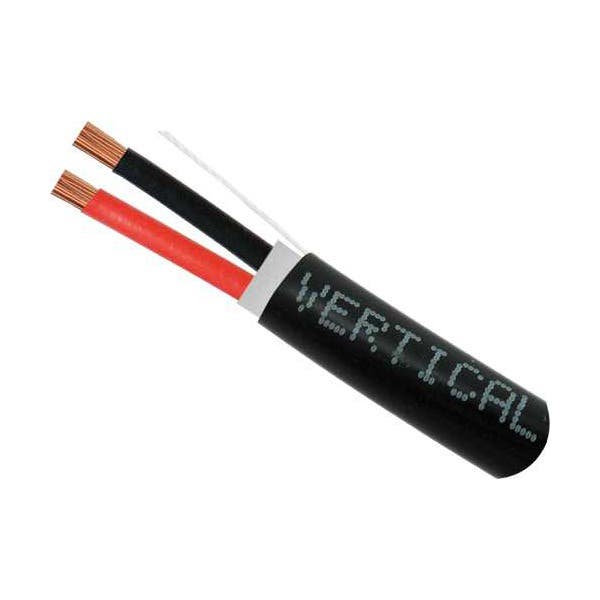

The VERTICAL CABLE 209-2315/DB is a 16AWG, 2-conductor audio cable designed for outdoor installations and direct burial. It features 65-strand, unshielded oxygen-free bare copper conductors for excellent signal transmission. The UV-rated PE jacket provides resistance to sunlight, moisture, and weather conditions. This 500ft cable is packaged in a pull box and meets ETL and RoHS compliance standards.
- Suitable for Direct Burial
- Durable Weather Resistant Jacket
- High-Strand Oxygen Free
Product Highlights
Ideal for large installations requiring reliable audio performance in residential and commercial outdoor audio applications.
Product Information
Standard Information
-
Brand: VERTICAL CABLE
-
Manufacturer Part Number: 209-2315/DB
Technical Specifications
-
AWG: 16
-
Conductors: 2
-
Conductor Material: Oxygen-free bare copper
-
Stranding: 65-strand
-
Jacket: UV-rated PE
-
Length: 500ft
-
Compliance: ETL Listed, RoHS compliant
-
Application: Outdoor audio installations, direct burial
-
Conductor Type: Stranded Bare Copper
-
Jacket Marking: VERTICAL 5024318 c(ETL)us AUDIO CABLE 16AWG 2 COND 65 STRANDED OXYGEN FREE OUTDOOR UV DIRECT BURIAL RoHS 500FT 076102N0702107 04:42
-
Voltage: 300 V RMS
-
Rated Temperature (ºC): -20 - 75
-
Reference Standard: ETL
-
Insulation Color: Black, Red
-
Ripcord Material: Nylon (150D)
