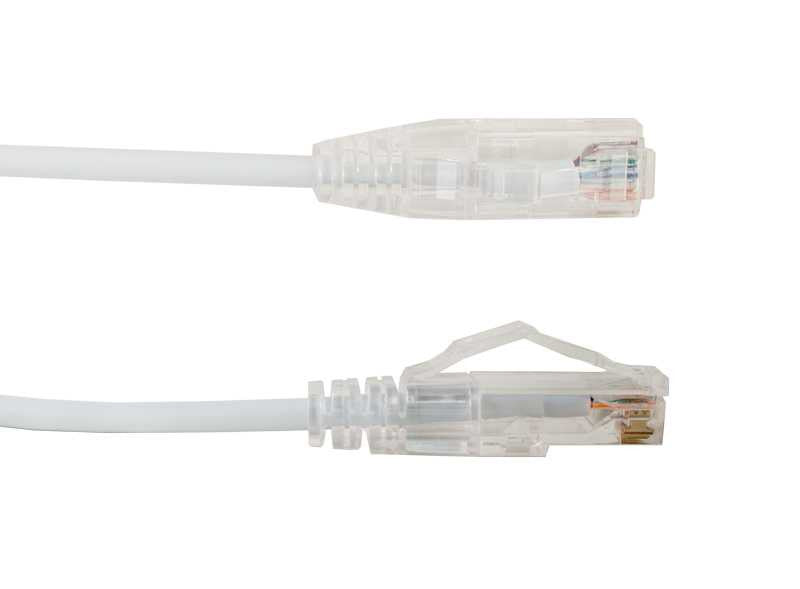

Vertical Cable 077-2053/5WH Cat6A Slim Snagless Patch Cord 5 feet

Product Description

The Vertical Cable 077-2053/5WH Cat6A Slim Type Mold-Injection-Snagless Patch Cord features a 28AWG stranded bare copper conductor and a slim 3.8mm PVC jacket. Ideal for tight spaces, this cord supports PoE+ and features gold-plated pins. It conforms to 568B wiring and is both RoHS compliant and UL listed.

• 28AWG stranded bare copper conductor for flexibility and durability.
• Slim 3.8mm PVC jacket for easy installation in tight spaces.
• Supports PoE+ (IEEE 802.3at) for power over Ethernet applications.

Product Highlights

This Category 6A slim patch cord is designed for superior performance and durability, suitable for various networking applications.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 077-2053/5WH

Technical Specifications

• Conductors: Bare Copper Stranded
• Plugs: Unshielded RJ45 Modular
• Pins: 8P8C Gold Plated
• Wiring: 568B Wiring Color Code
• Compliance: RoHS Compliant, UL
• Conductor: 28AWG stranded bare copper
• Jacket: Slim 3.8mm PVC
• Support: PoE+ (IEEE 802.3at)
• Conductor Size: Stranded 28 AWG
• Conductor Material: bare copper
• Insulation Material: high-density polyethylene (HDPE)
• Jacket Material: Polyvinylchloride (PVC) flame-retardant)
• Jacket Diameter: 0.15 in. (3.8 mm)
• Plugs Type: 8P8C modular plugs (RJ45)
• Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
• Plugs Contacts: 50-µin gold plated
• Cable Type: Category 6
• Cable Length: 5 ft
