Product Description

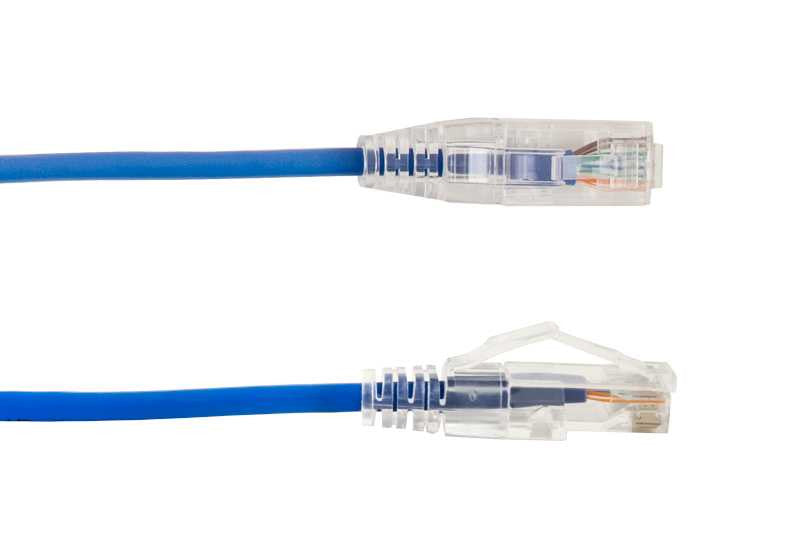

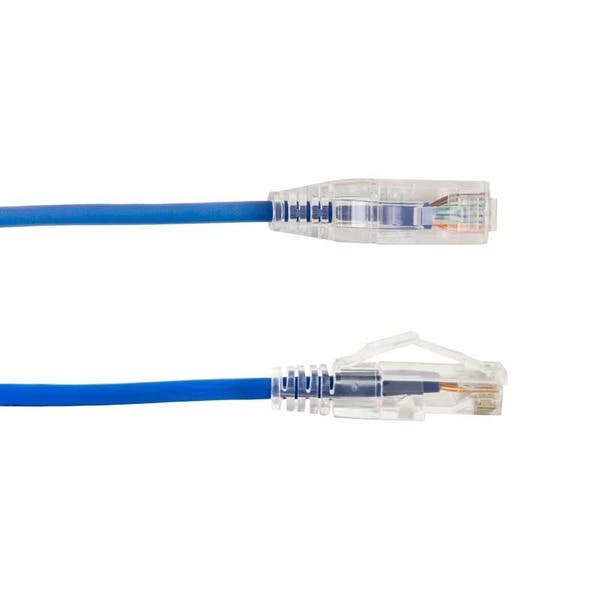

The VERTICAL CABLE 077-2047/5BL is a Category-6A slim type mold-injection-snagless patch cord with a 28AWG stranded PVC jacket. It features bare copper stranded conductors and unshielded RJ45 modular plugs with 8P8C gold-plated pins. The cable is compliant with the 568B wiring color code and has a slim 3.8mm diameter.
- Category-6A Slim Type Mold-Injection-Snagless Patch Cord, 28AWG Stranded, PVC Jacket
- Bare Copper Stranded Conductors
- Unshielded RJ45 Modular Plugs
Product Highlights
This slim Cat6A patch cord ensures high-speed network performance with a compact and flexible design, ideal for patch panels, switches, and structured cabling systems.
Product Information
Standard Information
-
Brand: VERTICAL CABLE
-
Manufacturer Part Number: 077-2047/5BL
Technical Specifications
-
Conductors: Bare Copper Stranded
-
Plugs: Unshielded RJ45 Modular
-
Pins: 8P8C Gold Plated
-
Wiring: 568B Wiring Color Code
-
Jacket: PVC, CM Rated
-
Diameter: 3.8mm (Slim Type)
-
Length: 5'
-
Conductor Size: 28 AWG Stranded
-
Material: Bare Copper (7/0.127)
-
Connectors(RJ45): 8P/8C
-
Type: Mold-Injection-Snagless, Slim Booted
-
series: 077
-
certifications: Cm Rated, Ul Listed, Rohs Compliant
-
voltage rating: 300 V
-
Conductor: 28AWG stranded bare copper
-
Plug: Unshielded RJ45 with 8P8C gold-plated pins
-
PoE Support: PoE+ (IEEE 802.3at)
-
Compliance: RoHS compliant and UL listed
-
Insulation Material: high-density polyethylene (HDPE)
-
Jacket Material: Polyvinylchloride (PVC) flame-retardant
-
Jacket Diameter: 0.15 in. (3.8 mm)
-
Plugs Type: 8P8C modular plugs (RJ45)
-
Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
-
Plugs Contacts: 50-µin gold plated
-
Cable Type: Category 6A
