Vertical Cable 077-2044/3WH Cat6A Slim Snagless Patch Cord 3 feet

Product Description

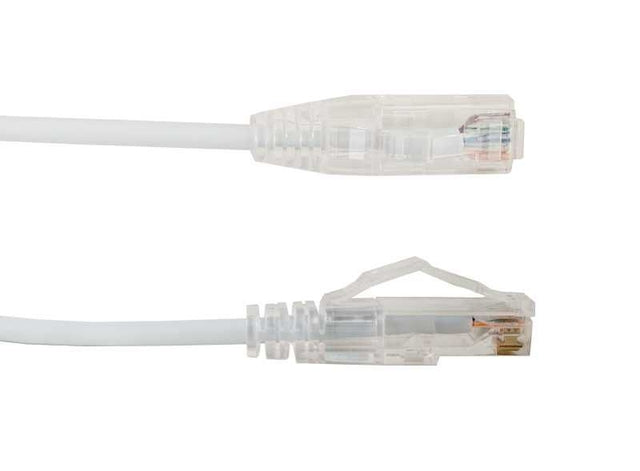

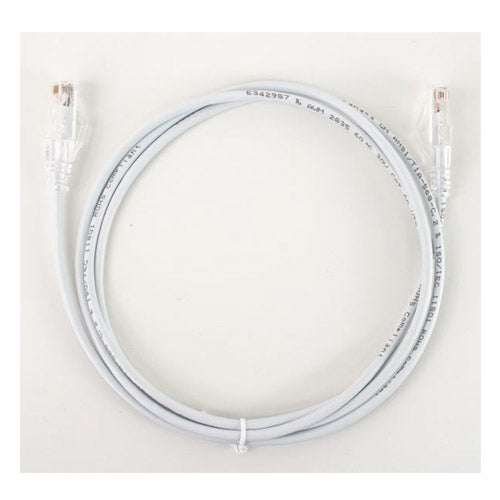

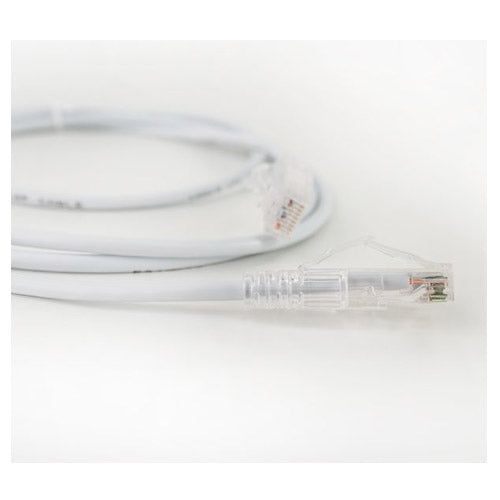

The Vertical Cable 077-2044/3WH is a Category-6A slim type mold-injection-snagless patch cord with a 28AWG stranded PVC jacket. It features 8P8C gold-plated pins and 568B wiring color code. Its slim 3.8mm diameter makes it ideal for tight spaces. This patch cord supports PoE+ and is RoHS compliant and UL listed.

• Category-6A Slim Type Mold-Injection-Snagless Patch Cord, 28AWG Stranded, PVC Jacket
• Bare Copper Stranded Conductors
• Unshielded RJ45 Modular Plugs

Product Highlights

This slim, snagless patch cord is designed for high-speed connectivity and easy installation in tight spaces, supporting PoE+ applications.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 077-2044/3WH

Technical Specifications

• Type: Category-6A Slim Type Mold-Injection-Snagless Patch Cord
• Conductors: 28AWG Stranded, Bare Copper
• Jacket: PVC
• Pins: 8P8C Gold Plated
• Wiring: 568B Wiring Color Code
• Diameter: 3.8mm (Slim Type)
• Length: 3'
• Rating: CM Rated
• PoE Support: Supports PoE+ (IEEE 802.3at)
• Conductor Size: 28 AWG Stranded
• Material: Bare Copper (7/0.127)
• Connectors(RJ45): 8P/8C
• Contacts: 50-µin Gold Plated
• Plugs: Unshielded RJ45 Modular Plugs
• Wiring Scheme: T568B
