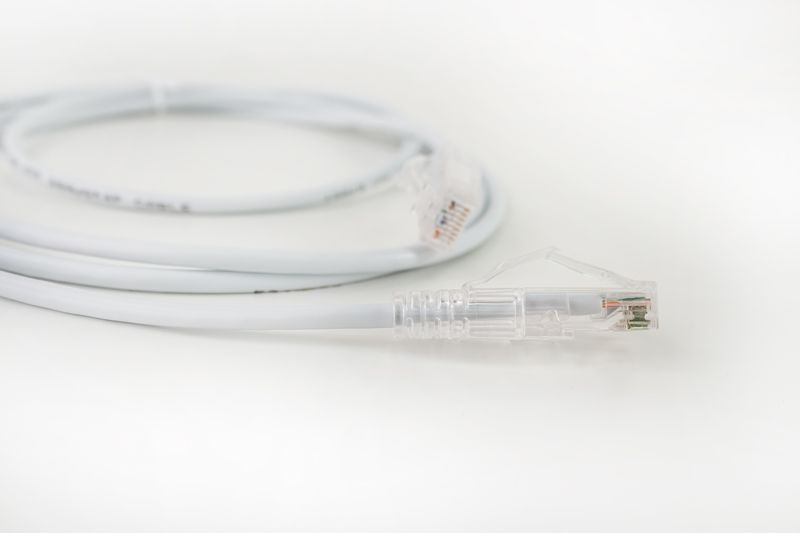

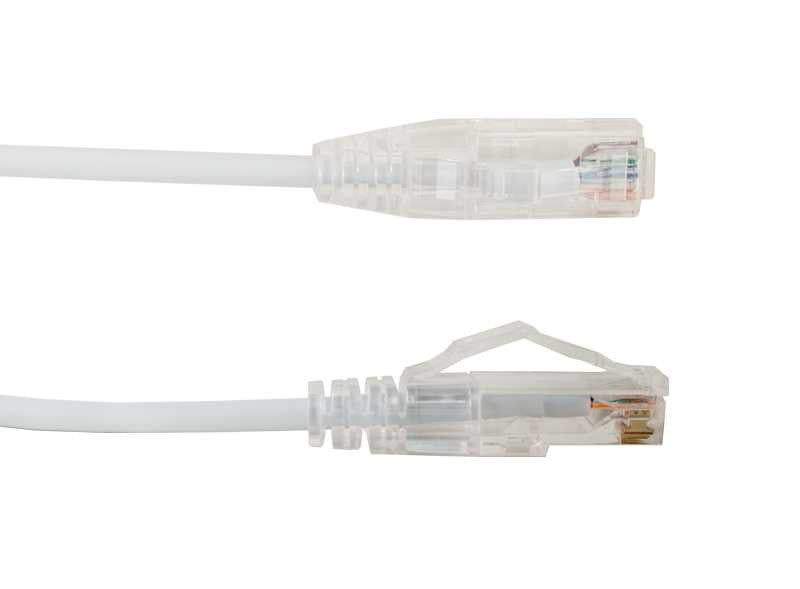

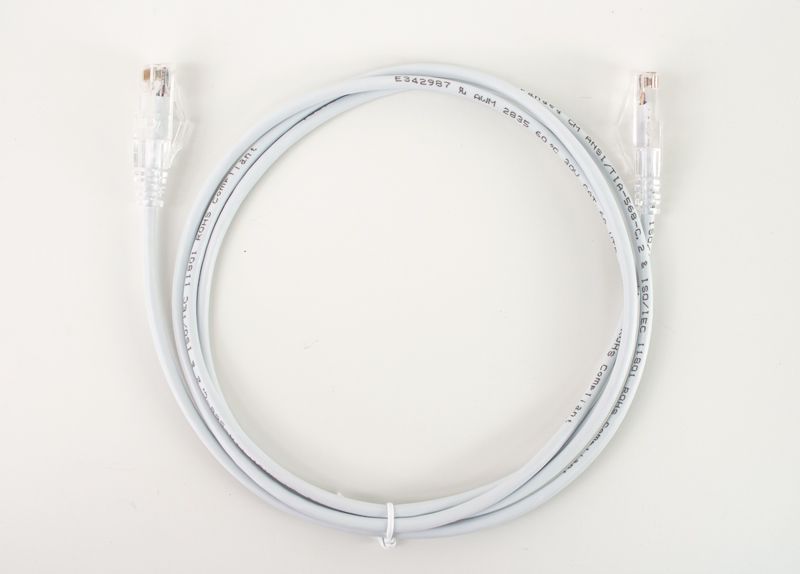

Vertical Cable 077-2017/05WH Cat6A Slim Snagless Patch Cord 6 inches

Product Description

The VERTICAL CABLE 077-2017/05WH is a Category-6A slim type mold-injection-snagless patch cord with a 28AWG stranded PVC jacket. It features bare copper stranded conductors and unshielded RJ45 modular plugs with 8P8C gold-plated pins, wired to the 568B standard. This patch cord is RoHS compliant and UL listed.

• Features Category-6A slim type mold-injection-snagless design.
• Constructed with bare copper stranded conductors.
• Equipped with unshielded RJ45 modular plugs and gold-plated pins.

Product Highlights

This slim, snagless patch cord is ideal for high-density environments, ensuring reliable connectivity and easy installation.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 077-2017/05WH

Technical Specifications

• Conductors: Bare Copper Stranded
• Plugs: Unshielded RJ45 Modular
• Pins: 8P8C Gold Plated
• Wiring: 568B Wiring Color Code
• Compliance: RoHS Compliant, UL
• Jacket: PVC, CM Rated
• Diameter: 3.8mm (Slim Type)
• Length: 6"
• Type: CAT6A Slim Type Mold-Injection-Snagless Patch Cord
• Conductor: 28AWG Stranded, Bare Copper
• PoE Support: Supports PoE+ (Type 2) IEEE 802.3at (25.5W)
• series: 077
• voltage rating: 300 V
• Conductor Size: Stranded 28 AWG
• Conductor Material: bare copper
• Insulation Material: high-density polyethylene (HDPE)
• Jacket Material: Polyvinylchloride (PVC) flame-retardant
• Jacket Diameter: 0.15 in. (3.8 mm)
• Plugs Type: 8P8C modular plugs (RJ45)
• Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
• Plugs Contacts: 50-µin gold plated
• Cable Type: Category 6
