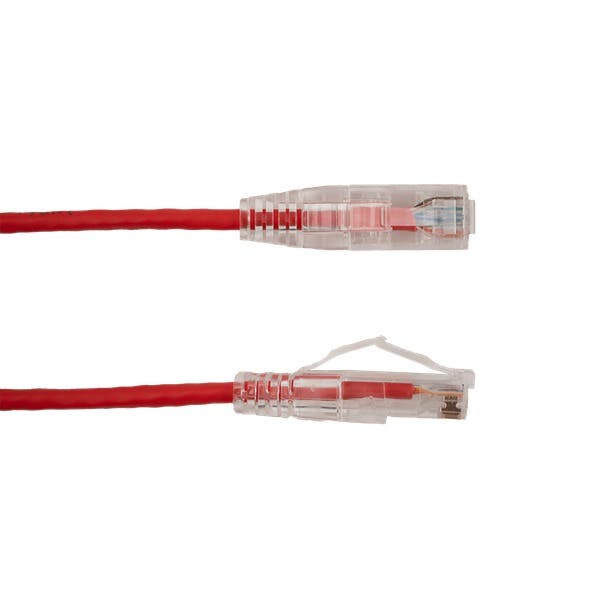

Vertical Cable 077-2016/05RD cat6a 6in. patch cord

Product Description

The Vertical Cable 077-2016/05RD is a 6in. 28AWG CAT6A slim type mold-injection-snagless patch cord with a PVC jacket. It features bare copper stranded conductors and unshielded RJ45 modular plugs with 8P8C gold plated pins. Compliant with 568B wiring color code, it is RoHS compliant and UL listed.

• Category-6A Slim Type Mold-Injection-Snagless Patch Cord, 28AWG Stranded, PVC Jacket
• Bare Copper Stranded Conductors
• Unshielded RJ45 Modular Plugs

Product Highlights

This slim patch cord is designed for high-performance network environments, delivering reliable connectivity in a compact design, ideal for installations in tight spaces.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 077-2016/05RD

Technical Specifications

• Conductor Size: 28 AWG
• Material: Bare Copper (7/0.127)
• Jacket: PVC, CM Rated
• Diameter: 3.8mm (Slim Type)
• Connectors(RJ45): 8P/8C
• Contacts/Pins: Gold Plated
• Wiring Color Code: 568B
• Type: CAT6A Slim Type Mold-Injection-Snagless Patch Cord
• Conductor: 28AWG Stranded, Bare Copper
• Plugs: Unshielded RJ45 Modular Plugs
• Pins: 8P8C Gold Plated
• Wiring: 568B Wiring Color Code
• PoE Support: PoE+ (Type 2) IEEE 802.3at (25.5W)
• Insulation Material: high-density polyethylene (HDPE)
• Jacket Material: Polyvinylchloride (PVC) flame-retardant
• Jacket Diameter: 0.15 in. (3.8 mm)
• Plugs Type: 8P8C modular plugs (RJ45)
• Plugs Housing: Flame-retardant polycarbonate (PC) 94V-0
• Plugs Contacts: 50-µin gold plated
• Cable Type: Category 6A
• Cable Length: 0.5 ft
• Conductors: 28AWG stranded bare copper
