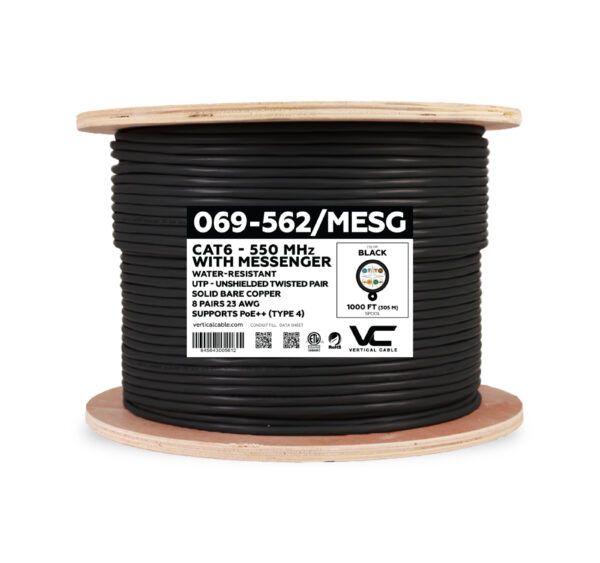

Vertical Cable 069-562/MESG Cat6 Outdoor Cable with Messenger

Product Description

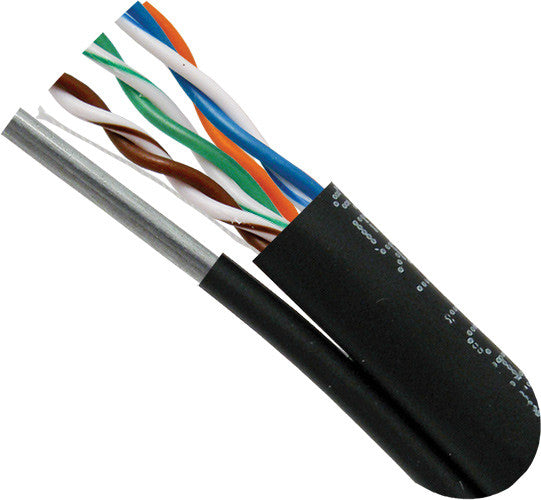

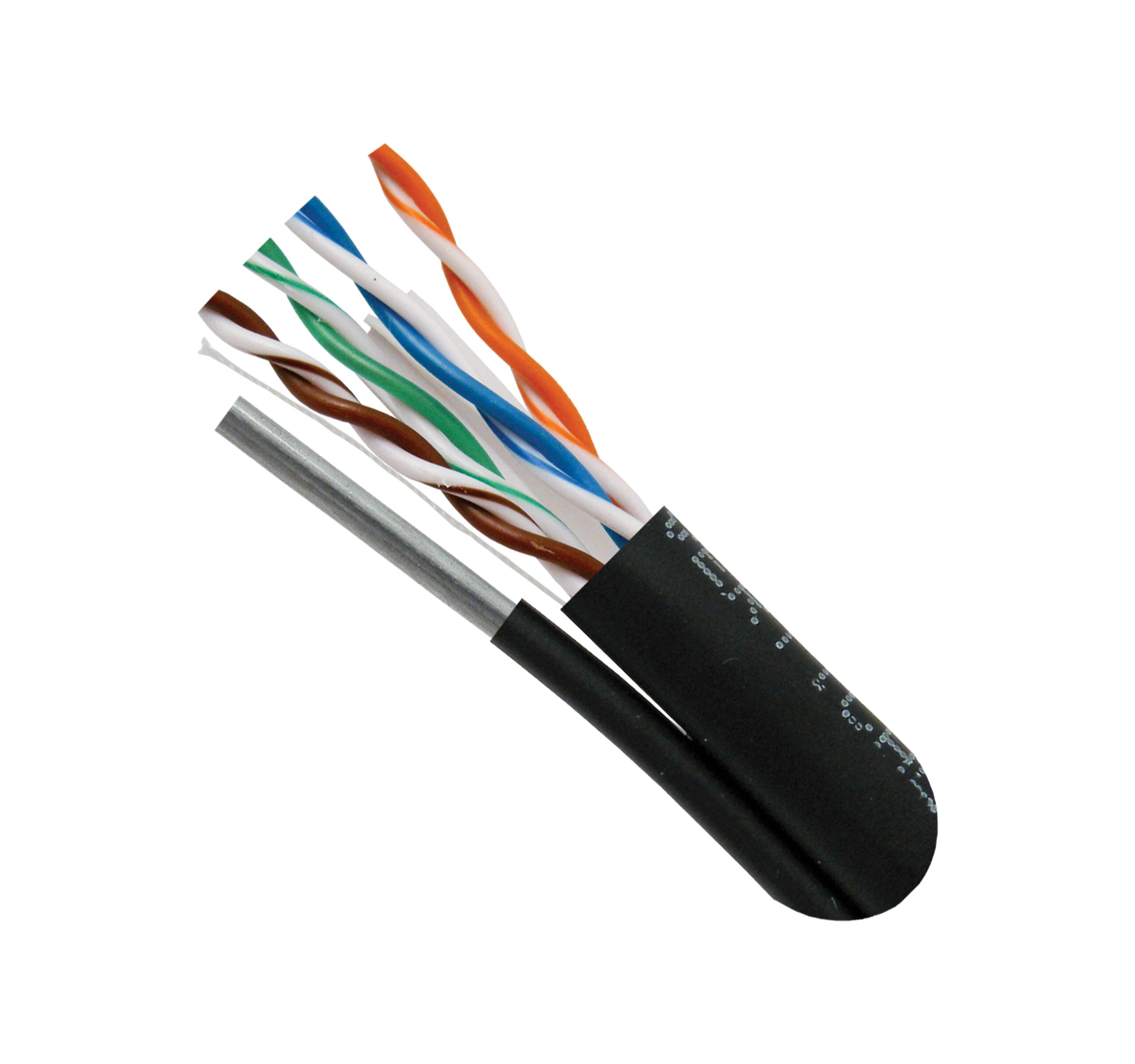

The VERTICAL CABLE 069-562/MESG is a rugged, aerial-rated CAT6 outdoor cable designed for PoE++ applications. Built with 23 AWG solid bare copper conductors and an LLDPE jacket, this cable includes a galvanized steel messenger for easy aerial suspension. It’s ideal for direct burial, pole-to-pole runs across commercial, industrial, or campus-wide networks.

• 550 MHz Bandwidth supports 10/100/1000BASE-T Ethernet, Fast Ethernet, and 155 Mbps TP-PMD/CDDI.
• Galvanized Steel Messenger reinforces the cable for aerial installation and strain relief.
• 23 AWG Solid Bare Copper Conductors provides excellent conductivity for data transmission and PoE++ (Type 3, 60V).

Product Highlights

This CAT6 outdoor cable excels in outdoor networking scenarios that demand strength, weather resistance, and reliable performance for aerial cable runs, outdoor surveillance, and wireless infrastructure.

Product Information

Standard Information

• Brand: VERTICAL CABLE
• Manufacturer Part Number: 069-562/MESG

Technical Specifications

• Bandwidth: 550 MHz
• Conductors: 23 AWG Solid Bare Copper
• Jacket: LLDPE Outdoor
• Messenger: Galvanized Steel
• Standards: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specs
• Certifications: ETL Listed, RoHS & CAN/CSA-C22.2 No. 214 certified
• Applications: 10/100/1000BASE-T Ethernet, Fast Ethernet, and 155 Mbps TP-PMD/CDDI
• PoE: PoE++ (Type 3, 60V)
• Temperature Rating: -40°F to 167°F (-40°C to 75°C)
• Insulation: PE
• Separator/Spline: LDPE
• Rip Cord: Yes (Nylon)
• Ethernet cable category: Cat 6
• Outer Material: LLDPE
