Vermont Gage 112410170 Class Zz Minus Plug Gage 10.17mm

Product Description

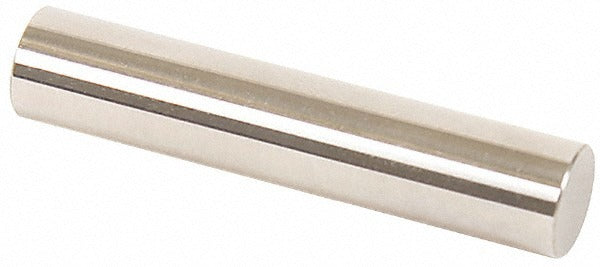

The VERMONT GAGE 112410170 is a Class ZZ minus plug pin gage with a 10.17 mm measurement diameter, manufactured from steel with a 10 microfinish surface coating. This single-ended pin gage is designed for NoGo inspection applications, providing a go/no-go dimensional check on bored holes, machined bores, and other precision features. The gage carries a tolerance of 0.00508 mm and includes a Certificate of Accuracy with NIST traceability, making it suitable for quality control environments where documented measurement standards are required. Machinists, quality technicians, and tool room personnel use this type of gage for incoming inspection, in-process checks, and final verification of critical bore dimensions.

This pin gage is suited for dimensional inspection in manufacturing, tooling, and metrology environments. Its NoGo designation makes it appropriate for verifying that a bore or hole does not exceed its maximum allowable size. It is also referenced for setting and verifying micrometers, verniers, and other measuring devices. The overall length of 2 inches provides standard reach for typical bench and fixture inspection setups. It ships individually and is intended for single-use measurement tasks or as part of a broader pin gage set.

Key Features

• Class ZZ minus tolerance grade for NoGo inspection applications
• 10.17 mm measurement diameter with 0.00508 mm tolerance
• Steel construction with 10 microfinish surface coating for consistent contact
• Includes Certificate of Accuracy with NIST traceability
• 2-inch overall length for standard bench inspection use
• Compatible with micrometers, verniers, and other precision measuring devices

Compatibility

Designed for NoGo bore inspection applications and for setting or verifying micrometers, verniers, and other precision measuring devices. Suitable for use in manufacturing quality control and tool room inspection setups requiring a 10.17 mm reference diameter.

Installation Notes

Pin gages are handled and used by quality technicians and machinists; no installation in the traditional sense is required. Clean the gage and the bore surface before use to prevent contamination that could affect measurement accuracy. Store the gage in its protective case when not in use to prevent surface damage and corrosion. Handle with care to avoid dropping, as impact can alter the gage diameter and invalidate the certificate of accuracy.
