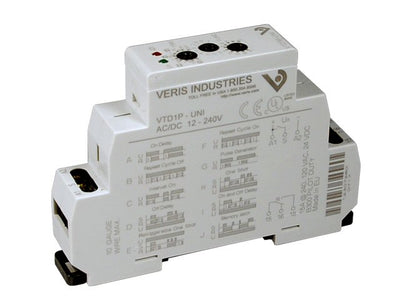

Veris VTD1P-UNI Time Delay Relay SPDT 15A DIN

Product Description

The Veris VTD1P-UNI Time Delay Relay is a reliable component designed for industrial use. This SPDT relay handles up to 15 amps and is suitable for various switching applications. Equipped with a time delay feature, it offers precise control over electrical circuits.

• Multi-function relay with external control switch
• Handles up to 15 amps
• Simplifies installation with compact design

Product Highlights

This time delay relay from Veris is built for industrial environments. It ensures durability and ease of use with its clear markings. Perfect for HVAC systems and other industrial settings.

Product Information

Standard Information

• Brand: Veris
• MPN: VTD1P-UNI

Technical Specifications

• Operating Range: 85% to 110% of nominal voltage
• Drop-out Voltage Threshold: 15% of nominal voltage
• Expected Relay Life: 100000 cycles electrical, 10000000 cycles mechanical
• Dielectric Strength: 1000VAC (RMS)
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Item Weight: 2.56 ounces
