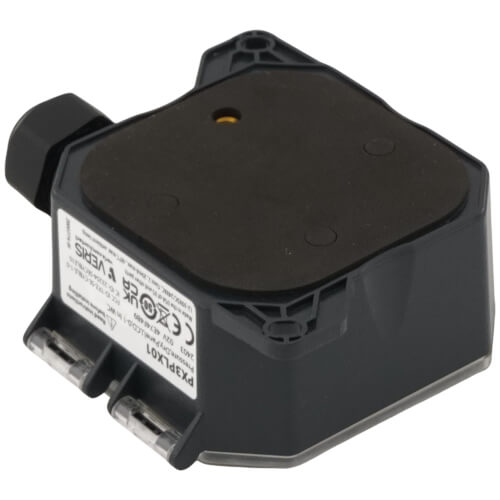

Veris PX3PLX02 Pressure Dry Panel LCD 0-10 in WC Replacement PX3PLX02

Product Description

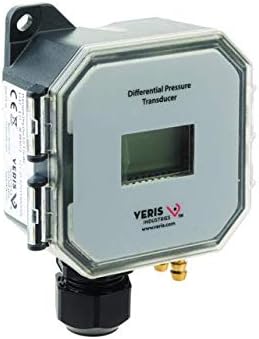

The Veris PX3PLX02 is a versatile pressure transducer designed for accurate measurement of air pressure or velocity, suitable for a variety of industrial and commercial applications. This model is engineered to deliver reliable performance with options for duct, panel, or universal installation.

• Field-selectable air pressure and velocity ranges.
• Includes a digital display for real-time monitoring.
• Made with a robust and water-resistant housing.

Product Highlights

The PX3PLX02 model offers dual operational modes (pressure and velocity) with a switch mechanism, allowing users to seamlessly transition between modes depending on the application. It features an environmental rating of IP65/NEMA 4, ensuring protection against dust and water ingress, suitable for challenging environments. The device also supports a digital auto-zero function, which simplifies calibration and enhances accuracy.

Technical Specifications

• Pressure and Velocity Range: 0 to 1 inch WG/0 to 3000 ft/min and 1 to 10 inch WG/3000 to 6000 ft/min
• Display: LCD, 3-1/2 digit
• Response Time: Standard T95 in 20 seconds
• Accuracy: ±1% F.S. of selected range
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Dimensions: Length: 3.46 inches, Width: 4.41 inches, Height: 7.4 inches
• Weight: 0.35 pounds
