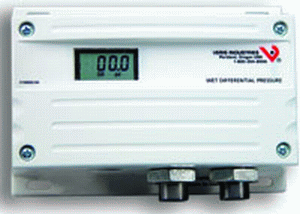

Veris Industries PWLN05S Differential Air Pressure Trans: 0...250 psi (0...17 bar)

Product Description

The Veris Industries PWLN05S is a differential air pressure transducer designed for monitoring air ducts, filters, and fans. With a wide pressure measurement range from zero to two hundred fifty psi and a response time suited for various applications, this sensor is ideal for HVAC systems and industrial processes.

• Measurement range: 0...250 psi (0...17 bar)
• IP65 rated for dust and water protection
• NIST certified calibration included

Product Highlights

This sensor is suitable for applications in plant rooms and chillers, providing critical monitoring of differential pressure for pumps and compressors.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: PWLN05S
• Type of Measurement: Differential pressure
• Pressure Measurement Accuracy: +/- 1 % FS for ranges A/B, +/- 1.5 % FS for C, +/- 2 % FS for D
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Burst Pressure: 1250 psig (85 bar)
• Output Type: Analogue output (4...20 mA, 0...5 V DC, 0...10 V DC)
• Fitting Size: 1/8 NPT female
• Wiring Technique: 3-wire
• Local Signalling: red/green LED
