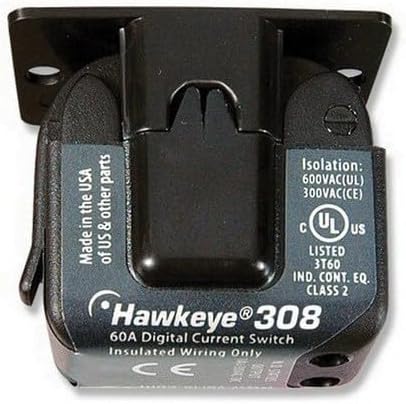

Veris H308 Current Switch Micro Split-Core Adjustable Normally Open

Product Description

The Veris H308 Current Switch is engineered for reliable performance in industrial environments, featuring a micro, split-core design with adjustable, normally open settings. This switch is ideal for monitoring electrical loads and detecting mechanical failures in motors and other equipment.

• Adjustable trip point from 0.75 to 50 amps.
• Integrated LED for status indication.
• IP54 international protection rating ensures durability against dust and water ingress.

Product Highlights

Optimized for professional use in HVAC, automation, and industrial control systems, the Veris H308 supports detailed electrical monitoring, contributing to system efficiency and safety. Its robust construction complies with UL 508 and CE EN61010-1:2001-02 standards, making it suitable for demanding applications.

Product Information

Standard Information

• Mounting Type: Wall Mount
• Connectivity Protocol: X-10

Technical Specifications

• Dimensions: 1.97 x 1.57 x 2.36 inches
• Operating Temperature Range: 5 to 140 degrees Fahrenheit
• Humidity Range: 10-90% RH non-condensing
• Terminal Block Maximum Wire Size: 16 AWG
• Terminal Block Torque: 7 in-lbs
• Agency Approvals: UL 508, CE EN61010-1:2001-02 Cat III
