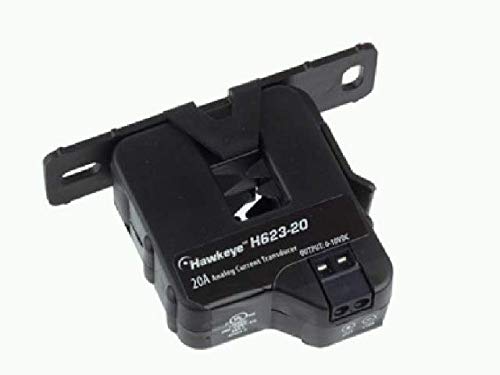

Veris H623-20 LV Instrument Current Transformer 0-20A 0-10VDC

Product Description

The Veris H623-20 is a high-performance low-voltage instrument current transformer. It is ideal for integrating into industrial automation systems and specializes in delivering precise electrical data.

• Delivers a proportional 0-10VDC output signal for accurate load trending
• Incorporates a self-gripping split-core design for quick retrofit installation without the need to disconnect the conductor
• Does not require external power, enhancing reliability and reducing installation complexity

Product Highlights

This current transformer is capable of monitoring up to 20A of current. It features an insulation class of 300VAC RMS and operates within a temperature range of -15 to 60 degrees Celsius. Certified by CE: EN61010-1:2001-2 CAT III, it ensures safety and high standards of quality.

Product Information

Technical Specifications

• Frequency Range: 50/60Hz
• Humidity Tolerance: 10 to 90% RH non-condensing
• Accuracy: ±2% full scale from 10% to 100% of selected range
• Response Time: 2 seconds
• Terminal Block Maximum Wire Size: 14 AWG
• Terminal Block Torque: 4 in-lbs
• Agency Approvals: CE certified
