Product Description

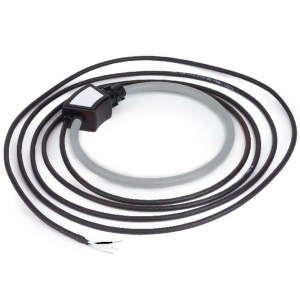

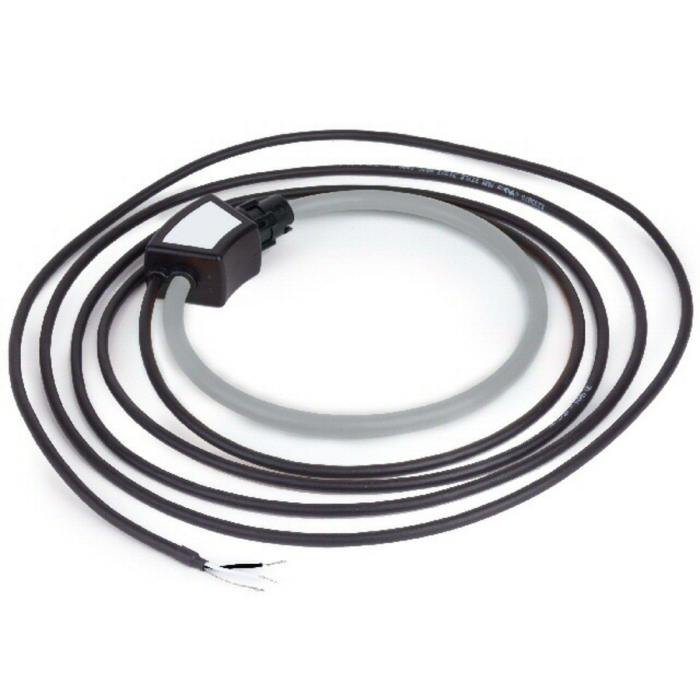

The Veris Flexible Current Transducer E683C502 is designed for efficient current measurement. This device features a split-core design, allowing for easy installation. It measures current from fifty to five thousand amps and is compatible with various power and energy meters.
- Easy installation with insulated leads.
- Maximum flexibility for installation in tight spaces.
- Compatible with E2X and E5Xxxa power meters.
Product Highlights
Ideal for monitoring a wide range of loads. The device provides one percent accuracy across its measuring range, making it suitable for high-capacity systems.
Product Information
Standard Information
-
Brand: Veris
-
Part Number: E683C502
Technical Specifications
-
Power Rating: 600 VAC, 5 Ka
-
Approvals: EN61010-1; UL61010-1; EN61010-2-032; UL61010-2-032
-
Measuring Range: 50 to 5000 Amps
-
Installation Type: Split-Core
