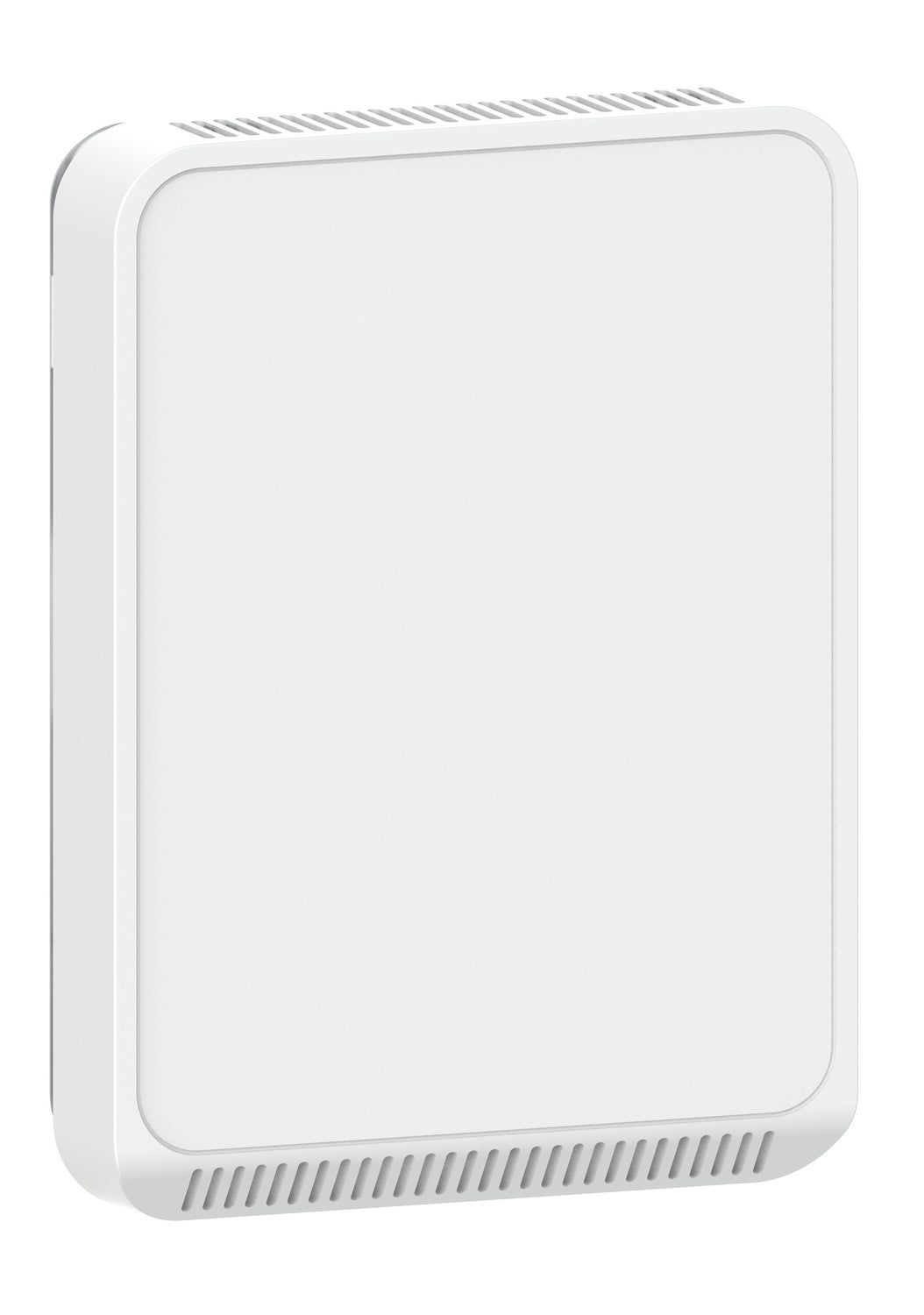

Veris CWE2N SpaceLogic Room Unit CO2 Temperature Sensor

Product Description

The Veris CWE2N SpaceLogic Room Unit is an air quality sensor designed for use in building automation systems. This sensor measures CO2 levels and temperature, making it suitable for HVAC applications. The CWE2N uses advanced dual-beam non-dispersive infrared (NDIR) technology for CO2 measurement, ensuring reliable data. It outputs signals in 4 to 20 mA or voltage formats, compatible with many BAS controllers.

• Measures CO2 with accuracy of ±30 ppm ±3% of the measured value
• Operates within ambient temperatures from zero to fifty degrees Celsius
• Wall-mount installation for convenient positioning

Product Highlights

This device is ideal for environmental monitoring in commercial buildings, helping maintain air quality and energy efficiency.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: CWE2N
• Material: ABS (acrylonitrile butadiene-styrene)
• Colour: White
• Mounting Mode: Wall-mount

Technical Specifications

• Width: 4.53 inches
• Height: 3.35 inches
• Depth: 0.94 inches
• Measurement Range: 0-2000 ppm CO2
• Power Supply: 20...30 V DC or 24 V AC
• Output Type: 2-wire 4 to 20 mA, 3-wire voltage
• Network Frequency: 50 Hz, 60 Hz
• Standards: FCC part 15 class B, UL 916
