Ventamatic XE401-UPS Attic Ventilator Motor 120V

Product Description

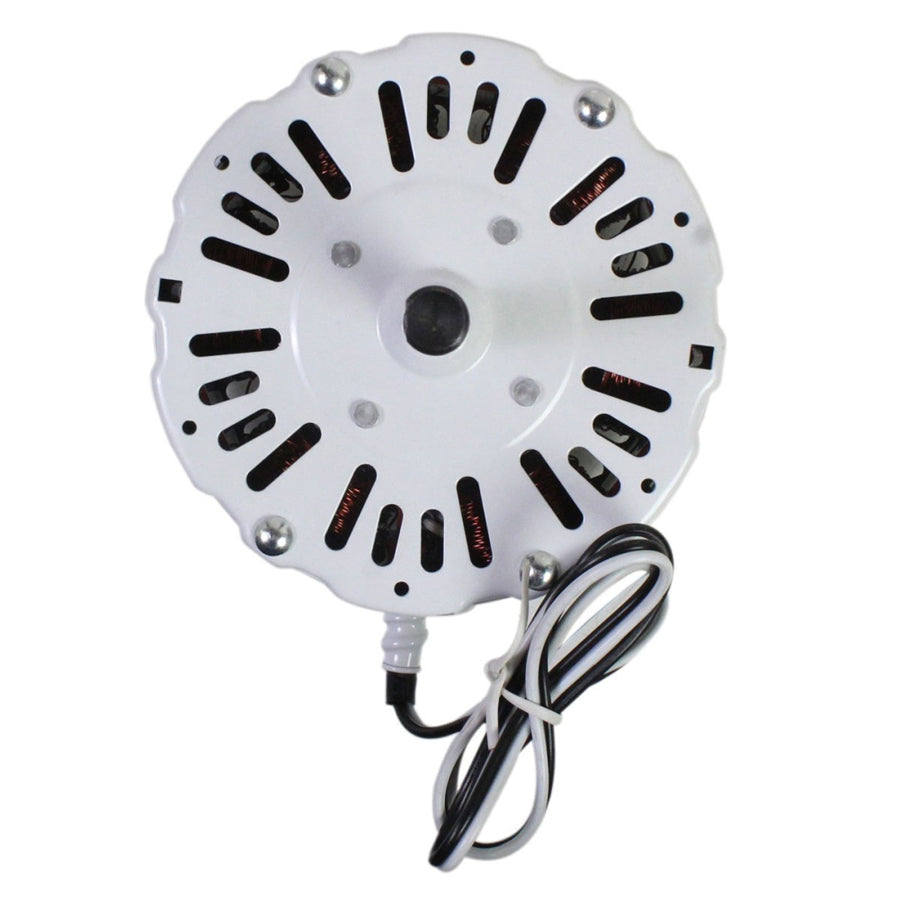

The VENTAMATIC XE401-UPS is a single-speed replacement motor designed for power attic ventilators. Rated at 120 VAC, 60 Hz, and 3.4 amps, it operates at 1075 RPM to drive attic ventilation fans in residential applications. The motor includes built-in thermal protection, which automatically interrupts operation if the motor reaches unsafe operating temperatures, guarding against burnout. HVAC technicians and electricians install this unit as a direct replacement when an existing power attic ventilator motor fails or draws excessive current. Its white finish and compact form factor suit standard ventilator housings.

This motor is suited for use in residential power attic ventilators where a single-speed, thermally protected motor is required. It is typically installed in attic fan assemblies mounted on roof decks or gable ends to exhaust hot air from attic spaces during warm months. Contractors replacing worn or seized attic ventilator motors will find this unit a direct-fit option for standard ventilator frames that accept a motor of this size and electrical rating.

Key Features

• Single-speed motor rated at 1075 RPM for consistent airflow output
• 120 VAC, 60 Hz operation compatible with standard residential electrical supply
• 3.4-amp draw suitable for typical attic ventilator circuit loads
• Built-in thermal protection automatically cuts power if motor overheats
• White finish matches common residential ventilator housings

Compatibility

Designed as an OEM-style replacement motor for residential power attic ventilators requiring a single-speed, thermally protected 120 VAC motor.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician. Disconnect and lock out power at the circuit breaker before removing the existing motor or handling any wiring. Confirm that the replacement motor shaft diameter, mounting configuration, and blade hub fit match the existing ventilator assembly before final installation. Work in attic spaces should comply with applicable local electrical codes and NEC requirements for wiring methods and circuit protection.

Technical Specifications

• Voltage: 120 VAC
• Frequency: 60 Hz
• Amperage: 3.4 amps
• Speed: 1075 RPM
• Number of Speeds: 1
• Thermal Protection: Yes
• Color: White
• Dimensions: 6 inches x 6 inches x 6 inches
• Weight: 5 pounds

Standard Information

• Brand: VENTAMATIC
• Manufacturer Part Number: XE401-UPS
