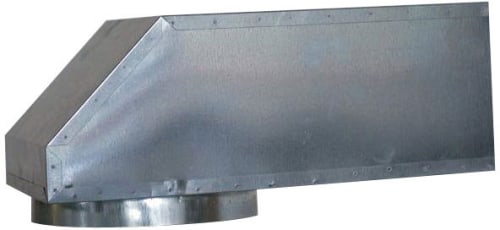

Vent-a-hood vp561 Back Side Vent Elbow

Product Description

The VENT-A-HOOD vp561 is a back and side vent elbow designed for use with Vent-A-Hood residential range hood systems. This fitting redirects exhaust airflow from the hood cabinet to a wall or ceiling duct run, allowing the installer to transition between a back-exit and side-exit venting configuration. It is a manufacturer-sourced replacement accessory intended for installation by a qualified HVAC technician or kitchen ventilation installer working on ducted hood exhaust systems.

The vp561 vent elbow is used in residential kitchen ventilation applications where the duct exit point does not align directly with the hood's primary exhaust outlet. It accommodates installations where the ductwork must change direction at the point of connection to the hood body, making it a common part in retrofit and replacement scenarios involving Vent-A-Hood ducted range hood units.

Key Features

• Provides back or side vent exit flexibility at the range hood cabinet
• Manufacturer-sourced replacement part for Vent-A-Hood systems
• Allows directional transition of exhaust duct connection at the hood
• Designed for ducted kitchen ventilation installations

Compatibility

Designed as an OEM-style replacement elbow fitting for Vent-A-Hood ducted range hood systems requiring back or side vent exit configurations.

Installation Notes

Installation should be performed by a qualified HVAC technician or ventilation installer familiar with residential exhaust ducting. Disconnect power to the range hood at the circuit breaker before beginning any work on the hood cabinet or duct connections. Ensure all duct joints are properly sealed to prevent grease-laden air from escaping into the wall or ceiling cavity. Local mechanical codes may apply to residential kitchen exhaust installations.

Technical Specifications

• Type: Back and Side Vent Elbow

Standard Information

• Brand: VENT-A-HOOD
• Manufacturer Part Number: vp561
