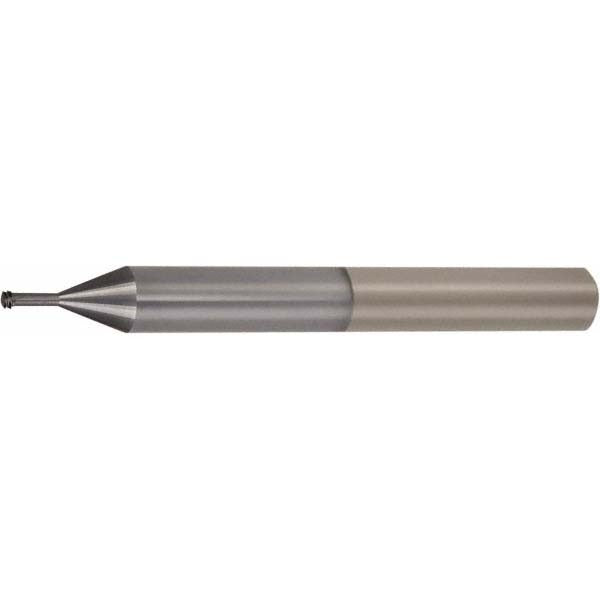

Vargus 80925 Helical Flute Thread Mill M6x1 Internal

Product Description

The VARGUS 80925 is a solid carbide helical flute thread mill designed for cutting internal M6x1 threads to ISO standards. It features a 0.189 inch cutting diameter, a 0.531 inch length of cut, and a 2.992 inch overall length. The tool is manufactured from micrograin solid carbide and carries a TiCN coating for extended tool life in demanding machining environments. With 5 flutes and a left-hand flute direction, it is engineered for efficient chip evacuation and smooth thread formation. This tool is intended for use in CNC machining centers where precise internal thread milling is required.

This thread mill is suited for producing M6x1 internal threads in a range of materials on CNC machining centers. The helical flute design and TiCN coating make it appropriate for ferrous and non-ferrous workpiece materials where surface finish and thread accuracy are critical. Installation and use require standard CNC toolholding compatible with a 1/4 inch shank diameter. Coolant-through capability is not supported on this tool; external coolant or mist may be used as appropriate for the application.

Key Features

• M6x1 internal thread profile conforming to ISO thread standards
• Micrograin solid carbide construction for rigidity and wear resistance
• TiCN coating for improved hardness and reduced tool wear
• 5-flute helical design with left-hand flute direction for efficient chip removal
• 0.189 inch cutting diameter with 0.531 inch length of cut
• 1/4 inch shank diameter for compatibility with standard CNC toolholders

Compatibility

Designed for use in CNC machining centers with toolholding that accepts a 1/4 inch shank diameter; suitable for ISO-standard M6x1 internal thread milling applications.

Installation Notes

Thread mills of this type are installed and removed by a qualified CNC machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Confirm shank seating and toolholder runout before operation, as excessive runout will degrade thread quality and tool life. Coolant-through is not available on this tool; program appropriate external coolant flow for the workpiece material.
