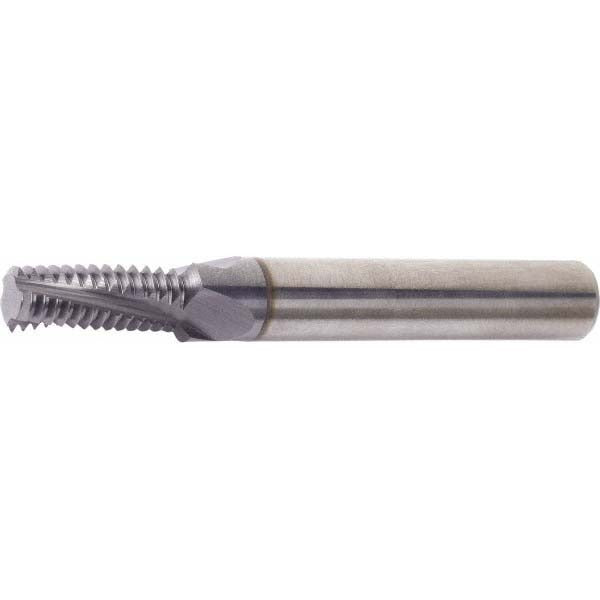

Vargus 80564 Thread Mill 1/2-14 Npt 4 Flute Ticn Carbide

Product Description

The VARGUS 80564 is a solid carbide helical flute thread mill designed for cutting 1/2-14 NPT threads in both internal and external applications. Built from micrograin solid carbide and coated with TiCN, it delivers consistent thread form and extended tool life in ferrous and non-ferrous materials. The 4-flute, right-hand helical geometry produces clean thread profiles in a single helical interpolation pass. With a cutting diameter of 0.4960 inches, a length of cut of 0.9290 inches, and an overall length of 3.5040 inches, this tool is suited for CNC machining centers where rigid setup and precise G-code interpolation are required.

This thread mill is used in precision machining environments requiring NPT tapered pipe thread production. It handles both internal and external thread milling in a single tool, reducing tooling inventory on jobs involving pipe fittings, manifolds, hydraulic blocks, and similar components. It is appropriate for use on CNC machining centers in job shops, production facilities, and MRO operations where threading with a single-pass helical interpolation cycle is preferred over tapping.

Key Features

• Cuts 1/2-14 NPT threads - internal and external in one tool
• Micrograin solid carbide substrate for rigidity and wear resistance
• TiCN coating reduces friction and extends tool life in steel and cast iron
• 4-flute right-hand helical flute design for clean thread form
• 0.9290 inch length of cut accommodates standard NPT thread engagement depth
• No coolant-through - external coolant or mist lubrication at the spindle applies

Compatibility

Designed for use in CNC machining centers capable of helical interpolation for NPT tapered pipe thread milling in internal and external configurations.

Installation Notes

Thread mills require a CNC machining center with helical interpolation capability - verify the control supports G02/G03 arc moves with a Z-axis component before programming. Ensure the spindle and workholding are rigid to avoid deflection, which directly affects thread pitch diameter accuracy. Follow the tool manufacturer feed and speed recommendations for TiCN-coated carbide in the workpiece material being cut. Inspect tool runout at the holder before use, as excessive runout will produce out-of-tolerance thread form.
