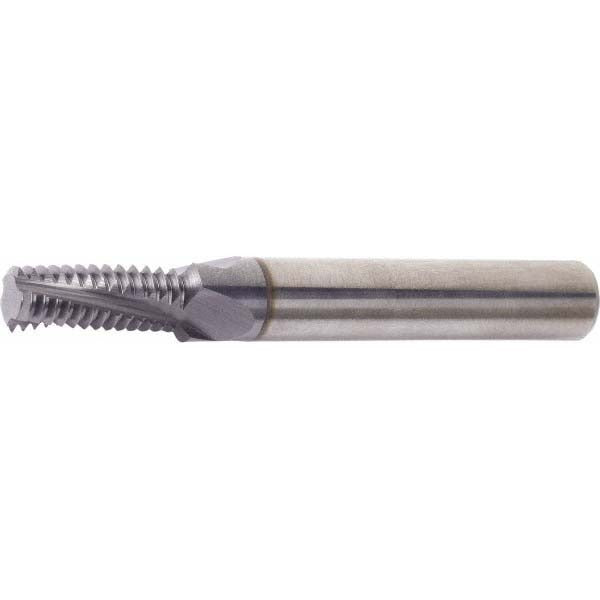

Vargus 80534 Thread Mill 10-32 Internal 3 Flute Solid Carbide

Product Description

The VARGUS 80534 is a helical flute thread mill designed for cutting internal 10-32 UN threads in a single helical interpolation pass. Built from micrograin solid carbide and coated with TiCN, it delivers consistent thread form and extended tool life in hardened and abrasive workpiece materials. The cutter runs a right-hand flute direction with 32 teeth per inch, a cutting diameter of 0.1210 inches, and a length of cut of 0.3130 inches. With an overall length of 2.0080 inches and a 1/8-inch shank diameter, it fits standard collet chucks used on CNC machining centers. Three flutes provide efficient chip evacuation in blind and through-hole applications.

This thread mill is suited for production and job-shop environments where 10-32 internal threads are required in materials that benefit from carbide tooling and TiCN coating, such as stainless steel, alloy steel, aluminum, and cast iron. It is particularly useful in applications where a tap would be at risk of breakage in tight-tolerance or interrupted cuts. Thread milling allows a single tool to generate the full thread profile while maintaining control over thread fit class through CNC offset adjustment.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• TiCN coating reduces friction and extends tool life in ferrous and non-ferrous materials
• 3-flute helical design promotes chip evacuation in blind-hole thread milling
• Right-hand flute direction compatible with standard CNC helical interpolation routines
• 10-32 UN internal thread form, 32 TPI
• No coolant-through requirement - external flood or mist coolant is sufficient

Compatibility

Designed for use on CNC machining centers capable of helical interpolation, accepting a 1/8-inch shank diameter collet or end mill holder. Cuts 10-32 UN internal threads per the UN thread standard.

Installation Notes

Thread mills are installed and operated by machining professionals using CNC machining centers with helical interpolation capability. Ensure the spindle, collet, and holder are clean and within runout tolerance before seating the shank. Program the helical interpolation path to match the 10-32 thread pitch and desired fit class, adjusting radial offset as needed for thread tolerance control. Do not use this tool in manual or non-interpolating operations.
