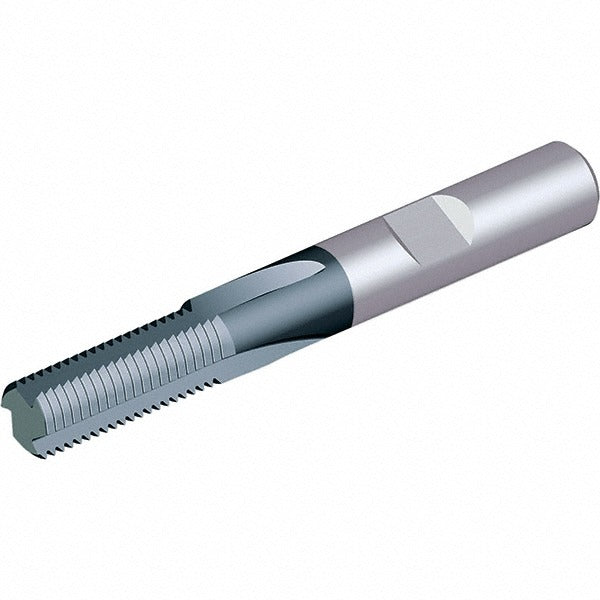

Vargus 80047 Thread Mill 1/2-13 Internal 3 Flutes Solid Carbide

Product Description

The VARGUS 80047 is a straight flute internal thread mill designed for cutting 1/2-13 UN threads in a single helical pass. Built from micrograin solid carbide and coated with TiAlN, it handles the heat and abrasion loads common in production milling environments. The tool carries 3 flutes, a cutting diameter of 0.310 inches, and a length of cut of 0.769 inches. With an overall length of 2.48 inches and a 5/16-inch shank diameter, it mounts in standard milling tool holders used by machinists and CNC operators in job shops and manufacturing cells.

This thread mill is suited for internal threading operations on CNC machining centers where interpolation milling replaces tapping. The 1/2-13 UN thread form is one of the most common fastener thread standards in general manufacturing, making this tool a regular fixture in ferrous and non-ferrous part production. It is appropriate for through-hole and blind-hole applications where thread quality and tool life in harder materials are priorities. No coolant-through capability is present, so flood or mist coolant applied externally is the standard approach.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance in demanding materials
• TiAlN coating extends tool life at elevated cutting temperatures
• 3-flute straight flute geometry produces 1/2-13 UN internal threads in a single interpolation pass
• 0.310-inch cutting diameter with 0.769-inch length of cut suits standard 1/2-13 thread depth requirements
• 5/16-inch shank diameter fits common ER and milling collet systems

Compatibility

Designed for CNC milling centers capable of circular interpolation; cuts 1/2-13 UN internal threads per standard UN thread form specifications.

Installation Notes

Installation and operation should be performed by qualified machinists or CNC programmers familiar with thread milling cycles. Ensure the tool holder and collet are clean and properly torqued before running. Program a helical interpolation cycle appropriate for the 1/2-13 thread pitch; do not use this tool in a straight plunge or tapping mode. Apply external flood or mist coolant directed at the cutting zone, as this tool does not have coolant-through capability.
