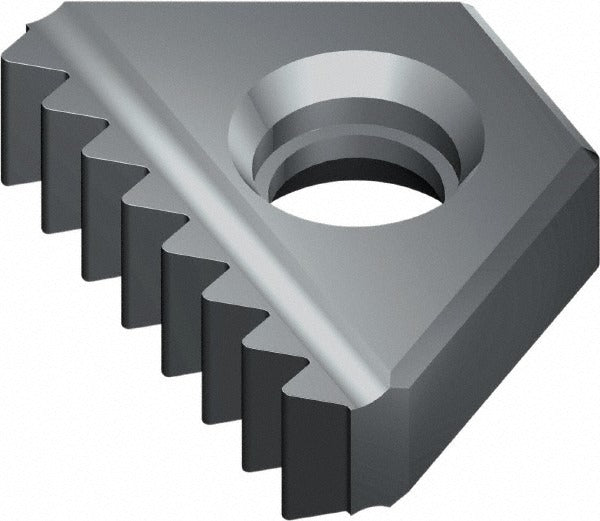

Vargus 64044 Carbide Thread Mill Insert 20 Tpi Un

Product Description

The VARGUS 64044 is a carbide thread milling insert designed for internal UN thread forms at 20 teeth per inch. Built from micrograin carbide stock and finished with a PVD-applied TiAlN coating, this insert delivers consistent thread geometry and extended tool life in steel and similar ferrous workpiece materials. The insert style is 5I with a 5/8-inch inscribed circle, fitting standard TM series thread mill bodies. It is installed and replaced by CNC machinists and tool-room technicians on milling centers running thread interpolation cycles.

This insert is suited for internal UN thread milling operations on machining centers in production and job-shop environments. The UN thread standard and 20 TPI specification make it applicable to common inch-series fastener threads in steel components. Primary workpiece material class is P-grade steel. The PVD TiAlN coating supports dry or near-dry machining strategies and helps resist heat buildup at the cutting edge during thread interpolation passes.

Key Features

• Micrograin carbide substrate with PVD TiAlN coating for heat and wear resistance
• Internal UN thread form at 20 TPI per ANSI B1.1:74
• 5/8-inch (15.88 mm) inscribed circle - fits standard TM series tool bodies
• Insert style 5I, manufacturer grade VTX
• Primary workpiece material classification: P-grade steel
• Sold individually; minimum order quantity is 5 pieces per order

Compatibility

Designed as an OEM-style replacement insert for VARGUS Standard TM series thread milling bodies accepting the 5I insert style with a 5/8-inch inscribed circle.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or tool-room technician following the tool body manufacturer's torque and clamping procedures. Power down and lock out the spindle before changing inserts. Inspect the insert pocket for chips or debris before seating a new insert. Verify thread interpolation program parameters match the 20 TPI specification before running the first part.
