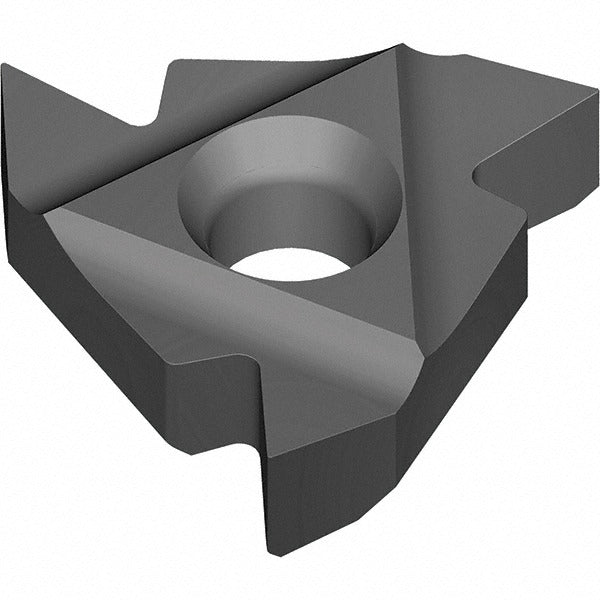

Vargus 54020 Threading Insert 3ER 11 Tpi Whitworth Carbide

Product Description

The VARGUS 54020 is a solid carbide external threading insert designed for precision thread cutting on CNC lathes and turning centers. Manufactured in the 3ER style with a 3/8 inch (0.3750 inch) inscribed circle, this insert produces Whitworth-form external threads at 11 TPI. The VK2P micrograin carbide grade delivers a bright, uncoated finish suited for threading operations where a PVD coating process is specified but a bare substrate is preferred for certain work materials. Right-hand orientation is standard. This insert is intended for use by machinists, toolroom technicians, and CNC operators working to Whitworth thread standards.

This insert is applied in external threading operations on turned components where Whitworth thread profiles are required. Typical applications include production threading of fittings, fasteners, and mechanical components to B.S.84:1956, DIN 259, and ISO 228/1:1982 standards. The 3ER style seats in compatible 3ER-series threading toolholders. Right-hand cutting direction suits standard lathe rotation for external thread profiles. Sold individually, with a minimum order quantity of 10 units per order.

Key Features

• 3ER insert style with 0.3750 inch inscribed circle for use in standard 3ER toolholders
• Solid micrograin carbide construction for wear resistance in threading applications
• VK2P manufacturer grade with bright uncoated finish
• 11 TPI external Whitworth thread form, right-hand cut
• Conforms to B.S.84:1956, DIN 259, and ISO 228/1:1982 thread standards
• PVD-capable substrate suitable for uncoated or coated tooling programs

Compatibility

Designed for use in 3ER-style external threading toolholders compatible with a 0.375 inch inscribed circle insert seat.

Installation Notes

Installation is performed by qualified machinists or CNC toolroom technicians. Ensure the machine spindle is fully stopped and the turret is de-energized before seating or replacing inserts. Use the manufacturer-specified torque wrench and clamp screw for the toolholder to secure the insert properly. Verify thread form and pitch against a thread gauge before running production parts.
