Vargus 53688 Threading Insert 14 Tpi Un Solid Carbide

Product Description

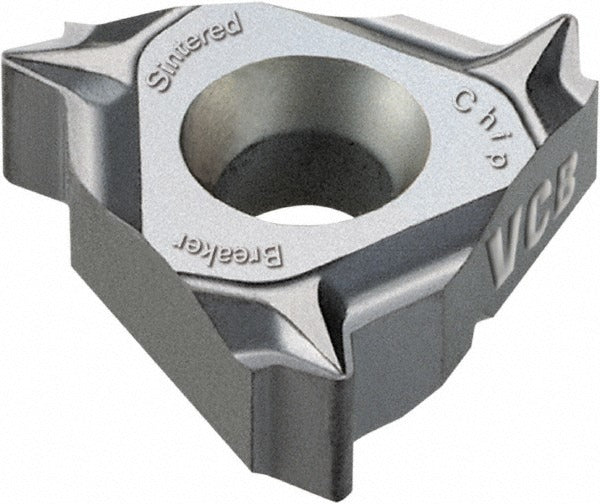

The VARGUS 53688 is a solid carbide laydown threading insert designed for cutting internal UN threads at 14 threads per inch (TPI). The insert features a TiAlN coating applied via PVD process, providing hardness and heat resistance suited for a range of workpiece materials. With a 60-degree included angle, 9.53 mm (3/8 inch) inscribed circle, and 3.60 mm thickness, the 53688 follows a standard 3JIR style geometry for right-hand internal threading operations. Machinists and CNC programmers working in production or job-shop environments install this insert into compatible toolholders on lathes and turning centers.

This insert is intended for right-hand internal UN thread applications at 14 TPI in accordance with ANSI B1.1:74. The SCB chipbreaker geometry and universal material compatibility make it suitable for a broad range of workpiece materials including ferrous and non-ferrous metals and exotic alloys, corresponding to ISO material groups H, K, M, N, P, and S. It is used in single-point threading passes on CNC lathes and manual turning equipment where precise thread form and repeatability are required.

Key Features

• Solid carbide substrate with TiAlN PVD coating for extended tool life across multiple material groups
• 3JIR insert style with right-hand cutting orientation for internal UN threading
• 14 TPI thread pitch conforming to ANSI B1.1:74 standard
• 60-degree included angle for standard UN thread form
• SCB chipbreaker for chip control in through and blind-bore threading
• Compatible with ISO material groups H, K, M, N, P, and S (universal workpiece material range)

Compatibility

Designed as a replacement threading insert for toolholders accepting the 3JIR insert style with a 3/8 inch inscribed circle. Verify holder specification against insert style code 3JIR and inscribed circle size before installation.

Installation Notes

This insert is installed by qualified machinists or tooling technicians on CNC or manual lathes. Power down and lock out the spindle before changing inserts. Use the appropriate torque wrench or insert key to seat the insert securely in the pocket without over-tightening. Inspect the insert pocket and clamping screw for damage before each installation to ensure proper seating and thread-form accuracy.
