Vargus 52306 Threading Insert 3IR10UN Vtx Solid Carbide 10 Tpi

Product Description

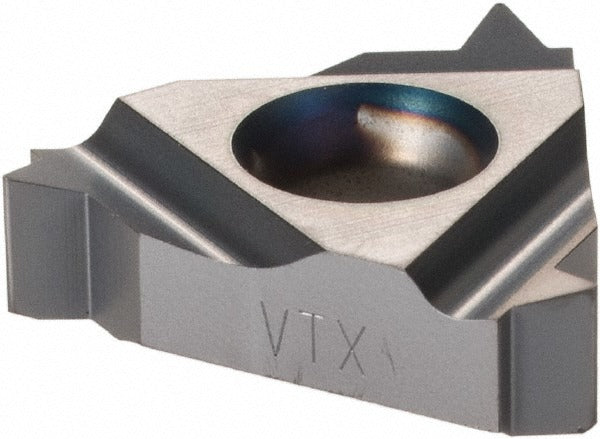

The VARGUS 52306 is a solid carbide laydown threading insert designed for internal UN thread cutting on CNC lathes and turning centers. Manufactured in the 3IR insert style with a 3/8-inch inscribed circle, this insert carries the VTX manufacturer grade and features a TiAlN coating applied via PVD process. It cuts right-hand internal threads at 10 threads per inch (TPI) with a 60-degree included angle, conforming to the UN thread standard. The TiAlN finish improves heat resistance and edge life across a wide range of workpiece materials, making it a reliable choice for production threading operations.

This insert is suited for internal threading applications in both job shop and production environments. The universal primary workpiece material rating covers ferrous and non-ferrous metals including cast iron, stainless steel, aluminum, copper alloys, carbon steel, and high-temperature alloys. It is intended for use wherever a standard 3IR laydown threading insert is required on manual or CNC turning equipment. A minimum order quantity of 10 applies to this insert, which is sold individually per package.

Key Features

• Solid carbide construction with PVD-applied TiAlN coating for extended tool life
• 3IR insert style, 3/8-inch inscribed circle - fits standard 3IR laydown toolholders
• 10 TPI, 60-degree included angle for UN internal thread profile per ANSI B1.1
• Right-hand cut orientation for standard internal threading operations
• Universal material compatibility covering steel, stainless, cast iron, aluminum, copper, and superalloys
• VTX grade - designed for consistent performance across diverse turning applications

Compatibility

Designed as an OEM-style replacement laydown threading insert for use in standard 3IR-style internal threading toolholders. Conforms to ANSI B1.1:74 thread standards and is manufactured under ISO 9001:2008 quality certification.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before seating or replacing the insert. Use the appropriate torx or clamp screw driver as specified by the toolholder manufacturer to secure the insert - do not overtighten the clamping screw by hand estimation alone. Confirm insert seating and edge orientation before resuming cutting operations.
