Vargus 51575 Threading Insert 20 Tpi Unj External Solid Carbide

Product Description

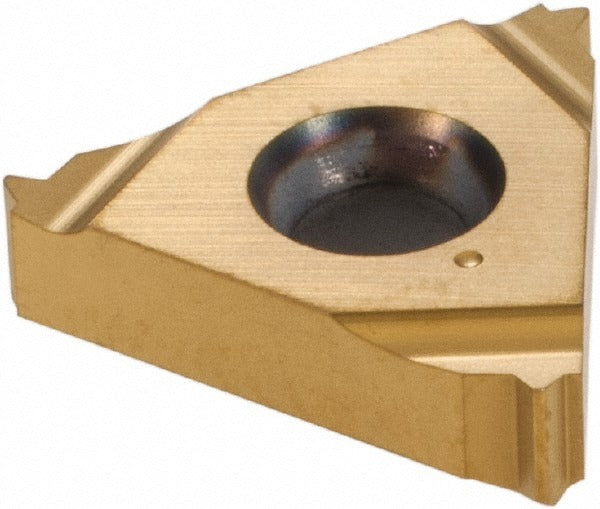

The VARGUS 51575 is a laydown threading insert designed for external UNJ thread cutting at 20 threads per inch. Built from solid carbide with a PVD-applied TiN coating, this insert delivers consistent thread form geometry on a wide range of workpiece materials. The 3ER insert style features a 60-degree included angle and a 3/8-inch inscribed circle, making it a right-hand external threading tool suited for CNC lathes and turning centers. It conforms to UNJ thread standards as defined under MIL-S-8879C, which specifies controlled-radius root threads used in aerospace and high-strength fastener applications. Machinists and tooling technicians handling precision thread-turning operations are the primary users.

This insert is applied in external thread-turning operations where UNJ thread forms are required, particularly in aerospace, defense, and high-cycle fastener manufacturing. The UNJ thread standard mandates a controlled root radius that reduces stress concentration compared to standard UN threads. The 51575 accommodates a broad range of workpiece materials, including carbon steels, stainless steels, cast irons, non-ferrous alloys, and high-temperature alloys, as indicated by the H, K, M, N, P, and S workpiece material codes assigned to this insert.

Key Features

• Solid carbide substrate with PVD TiN coating for wear resistance and thermal stability
• UNJ thread form with 60-degree included angle, compliant with MIL-S-8879C
• 20 TPI right-hand external threading configuration
• 3/8-inch inscribed circle, insert style 3ER, standard series
• Universal material compatibility covering ferrous, non-ferrous, and superalloy workpieces
• Manufactured under ISO 9001:2008 quality management certification

Compatibility

Designed for use in toolholders that accept 3ER-style laydown threading inserts. Verify toolholder pocket geometry and clamping method before installation. No specific toolholder model numbers were provided in available product data.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the turret is de-energized before seating or replacing the insert. Confirm the insert is fully seated in the pocket and that the clamping screw is tightened according to the toolholder manufacturer's specifications. Inspect the thread form on a test pass before running production cuts.
