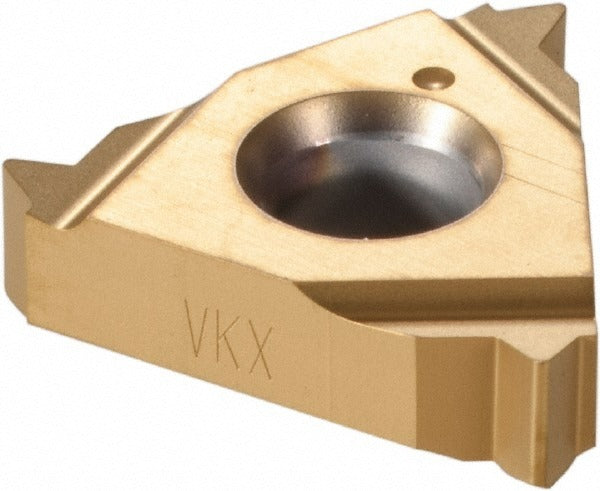

Vargus 51310 Threading Insert 13 Tpi 3/8 Inch Un Carbide

Product Description

The VARGUS 51310 is a solid carbide laydown threading insert designed for external UN thread cutting at 13 threads per inch (TPI). Manufactured in the 3ER insert style with a 3/8-inch inscribed circle, this insert features a 60-degree included angle and a PVD-applied titanium nitride (TiN) coating. The VKX manufacturer grade and TiN finish work together to extend tool life across a broad range of workpiece materials. Right-hand orientation makes it suitable for standard external threading operations on CNC lathes and screw machines. The insert is a direct-fit replacement for OEM-style 3ER toolholders used in production threading applications.

This insert is intended for external UN threading on turning centers, CNC lathes, and manual lathes equipped with compatible 3ER-style toolholders. The universal primary workpiece material designation covers a wide range of materials including steels, stainless steels, cast irons, non-ferrous alloys, high-temperature alloys, and hardened materials. Machinists and toolroom technicians working in job shop, production, or maintenance environments will find this insert suited for threading fastener profiles, fittings, and other externally threaded components to UN standards.

Key Features

• 3ER insert style with 3/8-inch inscribed circle for direct toolholder compatibility
• 13 TPI UN external thread form with 60-degree included angle
• Solid carbide construction for rigidity and wear resistance
• PVD TiN coating for extended edge life across universal workpiece materials
• Right-hand cutting orientation for standard external threading
• ISO 9001:2008 manufactured under certified quality standards

Compatibility

Designed as a standard replacement laydown threading insert for 3ER-style external threading toolholders used in UN thread applications at 13 TPI.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine before indexing or replacing inserts. Use the appropriate torque wrench and insert clamping screws specified by the toolholder manufacturer - do not overtighten, as carbide inserts are brittle and susceptible to clamp-induced fracture. Verify insert seating and toolholder cleanliness before resuming cutting operations.
