Vargus 51238 Threading Insert 12 Tpi Solid Carbide

Product Description

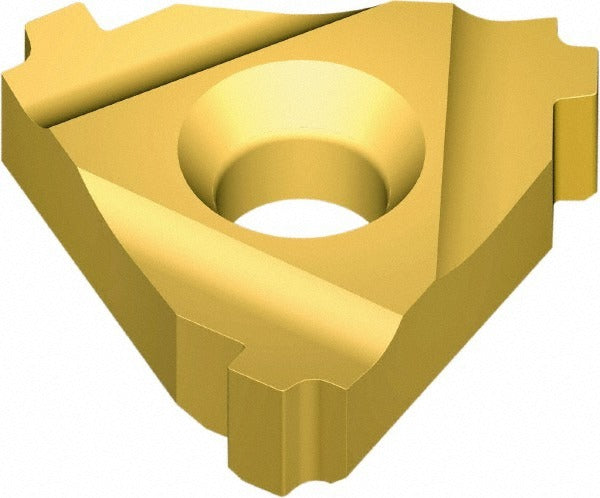

The VARGUS 51238 is a solid carbide laydown threading insert designed for cutting external American Buttress threads at 12 threads per inch (TPI). Manufactured to a VKX grade with a PVD-applied TiN coating, it is built for right-hand external threading operations across a wide range of workpiece materials. The insert features a 45-degree included angle and measures 0.375 inches inscribed circle (9.53 mm) with a thickness of approximately 0.142 inches (3.60 mm). Machinists and CNC turning specialists use this insert in production and job-shop environments where precise Buttress thread profiles are required.

This insert is suited for external Buttress thread turning on lathes and CNC turning centers. The American Buttress thread form it produces conforms to ANSI B1.9-1973, making it appropriate for applications such as hydraulic cylinders, breech mechanisms, and load-bearing threaded components where one flank carries the primary thrust load. It is compatible with universal workpiece material groups including ferrous, stainless, cast iron, non-ferrous, and heat-resistant alloys, corresponding to material codes H, K, M, N, P, and S.

Key Features

• Solid carbide construction with PVD TiN coating for wear resistance across diverse workpiece materials
• Right-hand external American Buttress thread form, 12 TPI, conforming to ANSI B1.9-1973
• 45-degree included angle with a single tooth per side for clean, defined thread flanks
• Insert style 3ER with size code 3 for compatibility with standard 3ER toolholders
• Inscribed circle of 3/8 inch (9.53 mm) and thickness of 3.60 mm for precise seating in holder pockets
• Universal material grade VKX suitable for steel, stainless, cast iron, non-ferrous, and superalloys

Compatibility

Designed for use in standard 3ER-style threading toolholders. Confirmed compatible workpiece material groups: H, K, M, N, P, and S per manufacturer classification. Thread standard conformance: ANSI B1.9-1973.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Ensure the insert seats fully and evenly in the toolholder pocket and that the clamping screw is torqued according to the toolholder manufacturer specification. Verify thread pitch and profile with a thread gauge before committing to a full production run.
