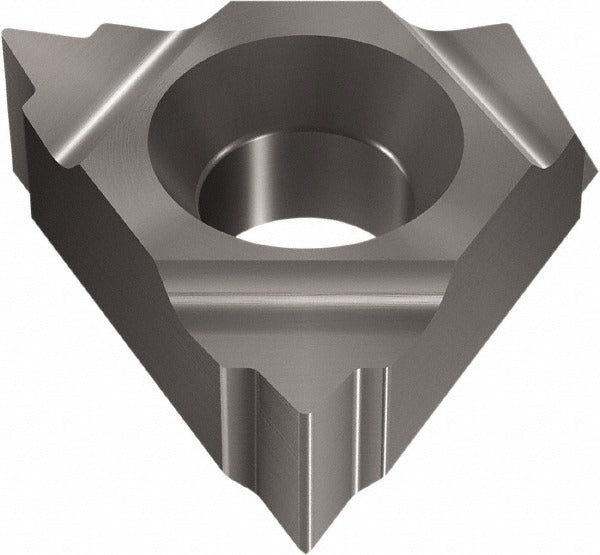

Vargus 50454 Carbide Thread Mill Insert Npt 8 Tpi

Product Description

The VARGUS 50454 is a carbide thread mill insert designed for cutting NPT threads at 8 teeth per inch (TPI). It carries a TiCN coating applied via PVD process over a micrograin carbide substrate, which improves wear resistance and tool life in demanding threading operations. The insert style is 3UEI with an inscribed circle of 9.53 mm and is suitable for both internal and external thread milling. Licensed machinists and CNC operators working in job shop, production, or maintenance environments install this insert in compatible thread mill toolholders.

This insert is built for NPT thread applications, covering both internal and external threading in a single tool geometry. It is well suited for use on CNC machining centers where NPT pipe thread forms are required in ferrous and non-ferrous workpieces. The TiCN finish and micrograin carbide construction make it a practical choice for medium to high-volume threading cycles where insert durability and thread accuracy are critical. Manufacturer grade is VBX.

Key Features

• Carbide substrate with micrograin grain structure for improved edge integrity
• TiCN coating via PVD process for enhanced wear and heat resistance
• Cuts both internal and external NPT threads from a single insert
• 8 TPI NPT thread form for standard pipe thread applications
• Insert style 3UEI with 9.53 mm inscribed circle
• Manufacturer grade VBX for consistent performance across production runs

Compatibility

Designed as an OEM-style replacement or direct-use insert for thread mill toolholders that accept the 3UEI insert style. Verify toolholder seat geometry and inscribed circle requirements before installation.

Installation Notes

Thread mill inserts of this type are installed by machinists on CNC machining centers. Power down and lock out the spindle before seating or replacing the insert. Use the correct torx or hex key specified by the toolholder manufacturer to secure the insert clamp - do not overtighten. Inspect the insert seat for chips or debris before installation to ensure proper seating and accurate thread form.
