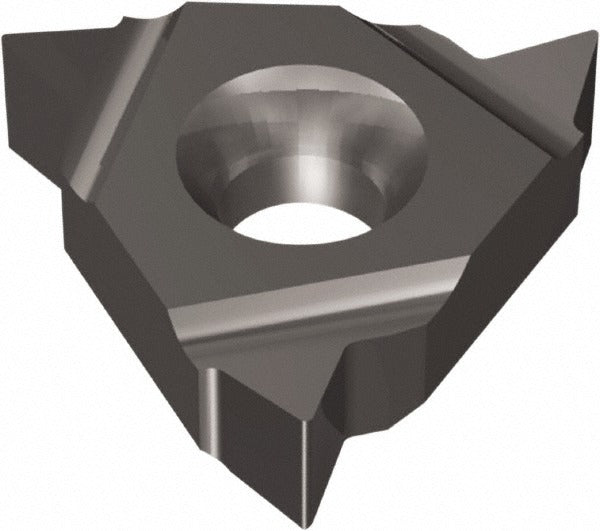

Vargus 50227 Carbide Thread Mill Insert Tialn 60 Degree

Product Description

The VARGUS 50227 is a carbide thread mill insert designed for internal thread milling operations. It features a TiAlN (Titanium Aluminum Nitride) finish that increases surface hardness and wear resistance during cutting, extending tool life in demanding applications. The insert is configured for partial profile 60-degree thread forms and covers a pitch range of 2-4mm (12-6 TPI), making it suitable for a broad range of metric and unified thread standards. Machinists and tool and die professionals install this insert into compatible thread mill bodies for CNC machining centers and multi-axis milling equipment.

This insert is used in internal thread milling applications on CNC machining centers where helical interpolation is performed. It is well suited for threading bores in ferrous and non-ferrous materials where the partial profile 60-degree geometry is required. The 2-4mm pitch range (12-6 TPI) allows a single insert to cover multiple thread sizes, reducing tooling changeovers in production and job shop environments. Typical users include machinists, tool and die makers, and CNC programmers working in precision manufacturing settings.

Key Features

• TiAlN finish provides high surface hardness and elevated heat resistance for extended insert life
• Partial profile 60-degree geometry covers both metric and unified 60-degree thread forms
• Pitch range of 2-4mm (12-6 TPI) allows one insert to thread multiple bore sizes
• Carbide substrate delivers rigidity and wear resistance in interrupted and continuous thread milling cuts
• Internal thread milling configuration suited for CNC helical interpolation operations
• AI insert style for use with compatible VARGUS thread mill bodies

Compatibility

Designed as a replacement-style thread mill insert with AI insert style geometry for use with compatible VARGUS thread mill insert bodies that accept the 50227 form factor.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Ensure the thread mill body is properly seated and clamped in the spindle and that the machine is in a safe, stopped state before changing inserts. Use the appropriate insert clamping torx or hex key as specified by the tool body manufacturer when seating the insert. Verify runout and insert seating before commencing thread milling operations.
