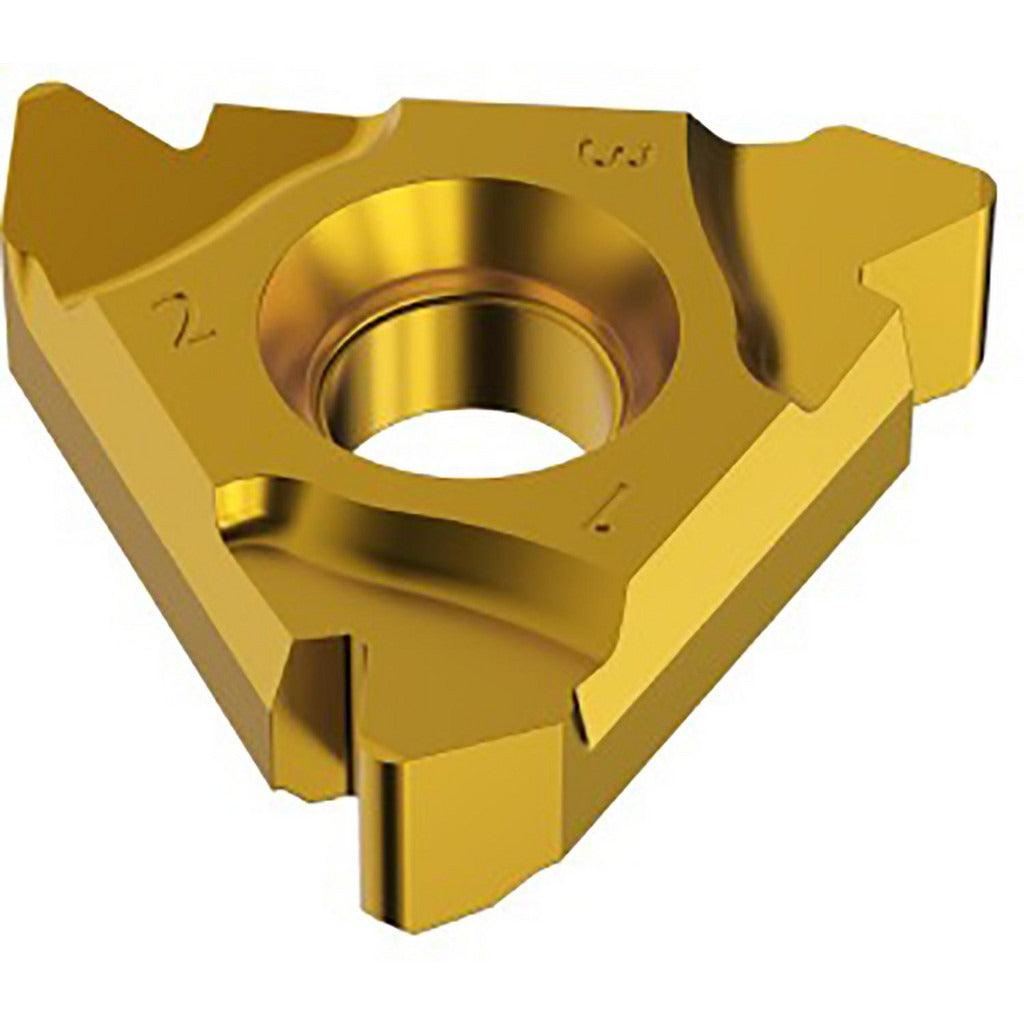

Vargus 30250 Laydown Threading Insert External Npt 3/8

Product Description

The VARGUS 30250 is a laydown-style carbide threading insert designed for cutting external NPT (National Pipe Taper) threads. Manufactured from solid carbide grade VK8 with a PVD-applied AlTiN/TiN coating, this insert delivers heat resistance and edge durability in demanding threading operations. It features a 60-degree included angle and a 3/8-inch inscribed circle, placing it in a standard size range for pipe thread applications. The MACH TT series insert is intended for right-hand thread cutting and is installed in compatible laydown-style threading toolholders. This insert is used by machinists and pipe fabricators working with NPT fittings and threaded pipe connections in industrial and mechanical applications.

This insert is suited for external NPT threading on pipe and fittings in production machining, MRO, and fabrication environments. The NPT thread standard is widely used in North American plumbing, HVAC, and industrial piping systems. Right-hand thread orientation covers the vast majority of standard pipe thread work. The solid carbide VK8 substrate with AlTiN/TiN PVD coating provides performance across a range of ferrous and non-ferrous materials at moderate to high cutting speeds. No chipbreaker geometry is incorporated, making this insert appropriate for materials that produce manageable chips without additional chip control features.

Key Features

• Solid carbide VK8 grade substrate for rigidity and wear resistance in threading applications
• AlTiN/TiN PVD coating for improved heat resistance and extended tool life
• 60-degree included angle for standard NPT external thread profiles
• 3/8-inch inscribed circle - fits compatible MACH TT series laydown toolholders
• Right-hand cutting orientation for standard NPT pipe thread direction
• No chipbreaker geometry - suited for short-chipping or manageable-chip materials

Compatibility

Designed for use in MACH TT series laydown-style threading toolholders that accept a 3/8-inch inscribed circle insert. Intended for external NPT thread cutting applications.

Installation Notes

Insert seating and clamping should be performed with the machine fully powered down and the spindle locked. Use the correct torx or clamp screw driver specified for the toolholder to avoid damaging the insert pocket or seating surface. Verify insert orientation matches the right-hand thread direction before engaging the cut. Minimum order quantity of 10 units applies to this SKU - plan inventory accordingly.
