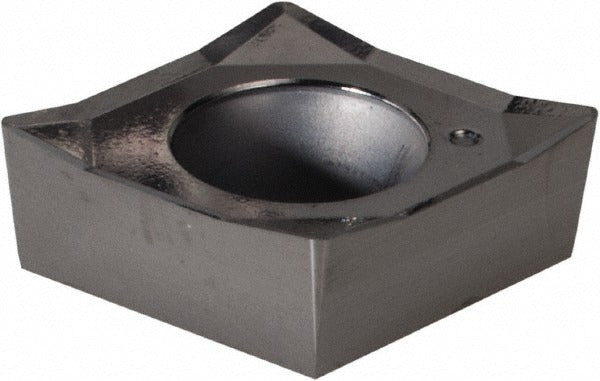

Vargus 11691 CCGT32.51-AF V12K Carbide Turning Insert

Product Description

The VARGUS 11691 is a solid carbide turning insert in the CCGT series, designed for precision external and internal turning operations on CNC and manual lathes. It carries an 80-degree diamond (C) shape with a positive rake geometry and a 7-degree relief angle, which reduces cutting forces and heat generation during light finishing cuts. The insert grade is V12K, ground to a G tolerance with a clearance code of C. The AF chip breaker geometry promotes controlled chip evacuation on the primary workpiece material group P, covering most steel applications. Each insert weighs approximately 0.01 pounds and is sold individually.

The 11691 is suited for finishing and semi-finishing passes on steel workpieces in both production shop and job-shop environments. The 3/8-inch (0.3750-inch) inscribed circle, 5/32-inch (0.1563-inch) thickness, and 1/64-inch (0.0156-inch) corner radius make it appropriate for tight-tolerance finishing where low cutting pressure and consistent surface finish are required. It is installed using a screw-type insert holding method, compatible with CCGT-style toolholders designed for positive-rake inserts. Machinists and CNC operators performing precision turning on steel components will find this insert a direct fit for standard CCGT pocket toolholders.

Key Features

• Solid carbide construction in grade V12K for wear resistance on steel materials
• 80-degree diamond insert shape (CCGT style) with positive rake for reduced cutting forces
• AF chip breaker geometry for reliable chip control during finishing passes
• 1/64-inch (0.0156-inch) corner radius for fine surface finish requirements
• Screw-held insert, G tolerance ground for repeatable edge positioning
• 7-degree relief angle reduces rubbing and extends tool life on light cuts

Compatibility

Designed as a direct-fit replacement for CCGT32.51-AF style inserts in standard CCGT screw-clamp toolholders accepting a 3/8-inch inscribed circle, positive-rake pocket geometry.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct Torx or hex key for the clamping screw and ensure the insert seats fully and cleanly in the pocket with no chips or debris under the insert. Do not overtighten the clamping screw, as this can crack carbide inserts.
