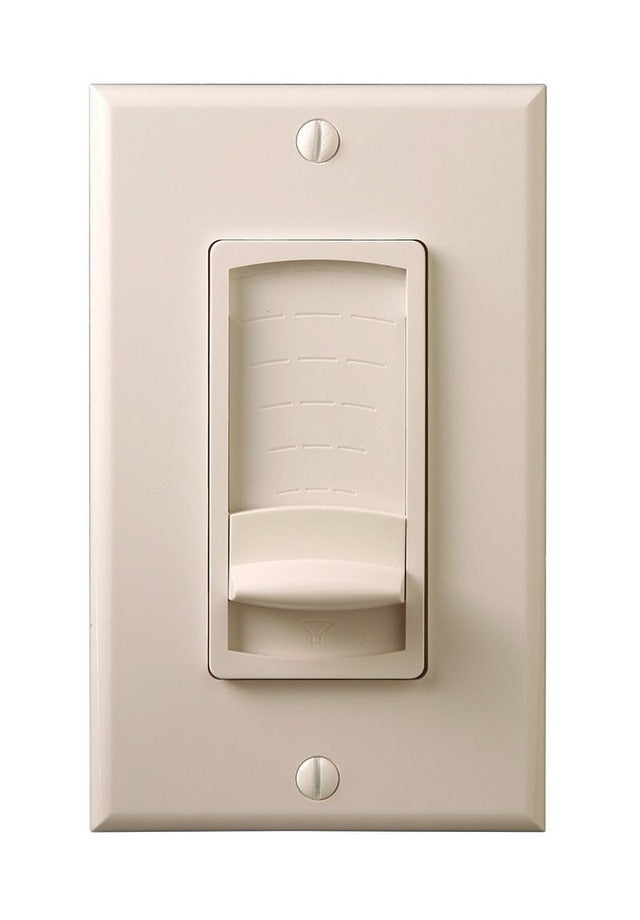

Vanco vcsi Volume Control Slider 105W Impedance Matching

Product Description

The VANCO vcsi is an in-wall volume control slider designed for distributed speaker systems in residential and commercial audio installations. It handles continuous power of 105 watts per channel with peak capacity of 350 watts per channel, making it suitable for demanding multi-room audio setups. The unit features impedance-matching capability that supports speaker loads ranging from 2 ohms to 16 ohms. It fits a standard single-gang electrical box with a mounting depth of 1.6 inches and uses removable spring-loaded screw terminals for straightforward wiring connections. Licensed electricians or low-voltage audio installers typically handle this type of installation.

The vcsi is suited for residential and light commercial distributed audio environments where per-zone volume control is required at the listener location. It integrates into multi-room speaker systems and provides smooth, stable level adjustment at the wall without requiring separate amplifier access. The included white and almond decor inserts allow the control to match common switch and outlet plate aesthetics across a variety of interior settings.

Key Features

• Impedance-matching design supports speaker loads from 2 ohms to 16 ohms
• 105-watt continuous power handling per channel; 350-watt peak per channel
• Fits standard single-gang electrical box with 1.6-inch mounting depth
• Removable spring-loaded screw terminals for simplified wiring and serviceability
• Includes both white and almond decor inserts for flexible aesthetic matching
• Suitable for residential and commercial multi-room audio installations

Compatibility

Designed as an in-wall volume control for distributed speaker systems with speaker loads between 2 ohms and 16 ohms, fitting standard single-gang electrical boxes.

Installation Notes

Installation is typically performed by a licensed electrician or a qualified low-voltage audio technician. De-energize the amplifier or receiver and disconnect speaker leads before wiring. Follow local electrical codes and any applicable low-voltage wiring standards for in-wall audio runs. Do not exceed the rated continuous power handling of 105 watts per channel during normal operation.

Technical Specifications

• Continuous Power Handling: 105 watts per channel
• Peak Power Handling: 350 watts per channel
• Impedance Range: 2 ohms to 16 ohms
• Mounting Depth: 1.6 inches
• Gang Size: Single-gang
• Terminal Type: Removable spring-loaded screw terminals
• Included Inserts: White and almond decor inserts

Standard Information

• Brand: VANCO
• Manufacturer Part Number: vcsi
