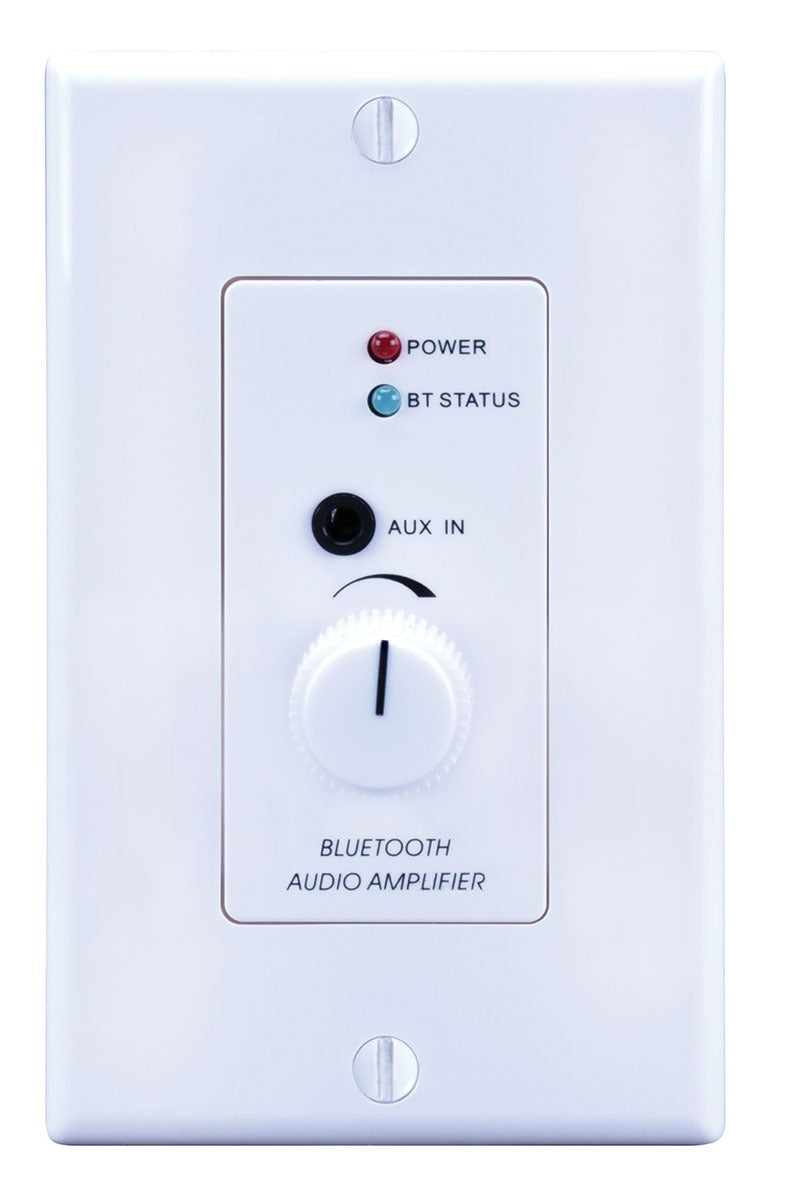

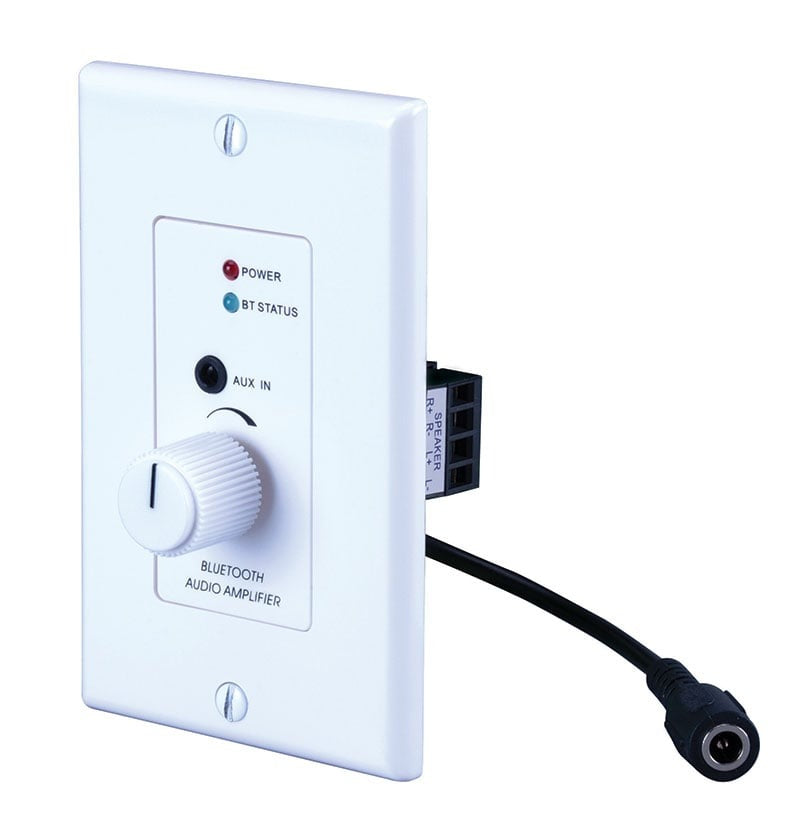

Vanco pa230wp Wall Plate Amplifier 30W Bluetooth

Product Description

The VANCO pa230wp is a Class D, 2-channel wall plate amplifier with integrated Bluetooth wireless technology. Rated at 30 watts per channel, it delivers clean audio output to 4-ohm or 8-ohm speaker loads. Designed for low-voltage installation, the unit mounts directly into a standard single-gang low-voltage box, making it a practical choice for in-wall audio systems in residential or light commercial settings. Audio-visual integrators and low-voltage technicians are the typical installers. A 3.5mm analog stereo input is included alongside Bluetooth connectivity for flexible source options.

The pa230wp suits in-wall distributed audio installations where a compact, self-contained amplifier is needed at the listening location. It is well-suited for smaller rooms, conference spaces, or residential zones where a dedicated rack amplifier is impractical. The auto source switching feature allows installers to configure priority for the Bluetooth source, streamlining daily use without manual input selection. A three-minute link-lost timeout function automatically returns the unit to standby or alternate input when the Bluetooth source disconnects.

Key Features

• Class D amplifier rated at 30 watts per channel across 2 channels
• Bluetooth wireless connectivity with auto source switching and Bluetooth source priority
• 3.5mm analog stereo input for wired source connection
• Compatible with 4-ohm and 8-ohm speaker loads
• Three-minute link-lost timeout for automatic source fallback
• Mounts in a standard single-gang low-voltage wall box
• TAA compliant

Compatibility

Designed as an OEM-style fit for single-gang low-voltage wall box installations in residential and light commercial distributed audio systems.

Installation Notes

Installation is performed by a licensed low-voltage technician or qualified audio-visual integrator. Power down the circuit and verify no voltage is present at the low-voltage box before beginning wiring. Ensure speaker wire gauge is appropriate for the load impedance and run length per standard low-voltage wiring practice. Do not exceed the rated speaker impedance minimum of 4 ohms on either channel.

Technical Specifications

• Amplifier Class: Class D
• Channels: 2
• Power Output: 30 watts per channel
• Speaker Impedance: 4 ohms or 8 ohms
• Analog Input: 3.5mm stereo
• Wireless Technology: Bluetooth
• Link-Lost Timeout: 3 minutes
• Enclosure Type: Single-gang low-voltage wall plate
• Compliance: TAA Compliant

Standard Information

• Brand: VANCO
• Manufacturer Part Number: pa230wp
