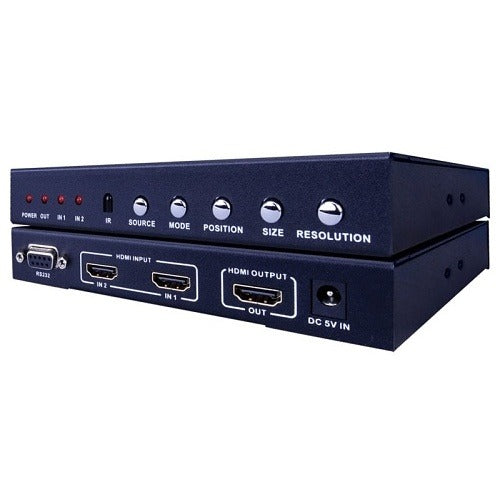

Vanco EVSW21MV Hdmi Switch 2x1 Pip RS-232

Product Description

The VANCO EVSW21MV is a 2-input, 1-output HDMI switch designed for AV distribution applications requiring source selection and picture-in-picture (PIP) display capability. The unit accepts two HDMI source inputs and outputs to a single display, with RS-232 serial control for integration into control systems or automation environments. It is suited for commercial AV installations, conference rooms, digital signage setups, and residential home theater systems where multiple HDMI sources feed a single display. AV integrators and low-voltage technicians are the primary installers of this device.

The EVSW21MV fits installations where two HDMI sources must be managed on one screen simultaneously or switched between on demand. The PIP function allows both sources to appear on the display at the same time, with one source occupying a smaller inset window. RS-232 connectivity allows the switch to be controlled by a third-party control processor or automation system, making it appropriate for managed AV environments where manual switching is not preferred.

Key Features

• 2-input, 1-output HDMI switching for single-display source management
• Picture-in-picture (PIP) support allows simultaneous display of both HDMI sources
• RS-232 port enables integration with control systems and automation processors
• Compact form factor suited for rack-adjacent or surface-mount AV installations

Compatibility

Designed as an OEM-style HDMI distribution component compatible with standard HDMI source devices and displays in residential and commercial AV systems.

Installation Notes

Installation is typically performed by a licensed low-voltage AV technician or systems integrator. Power down all connected source devices and displays before making HDMI connections. RS-232 wiring should follow the control processor manufacturer's pinout and baud rate specifications. Verify HDMI cable lengths and quality meet the signal requirements of the connected source and display before completing the installation.
