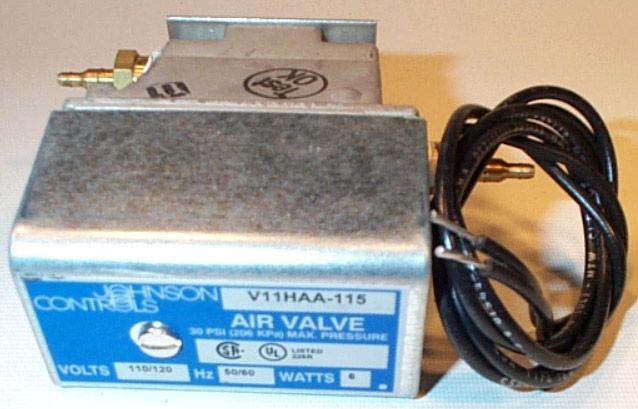

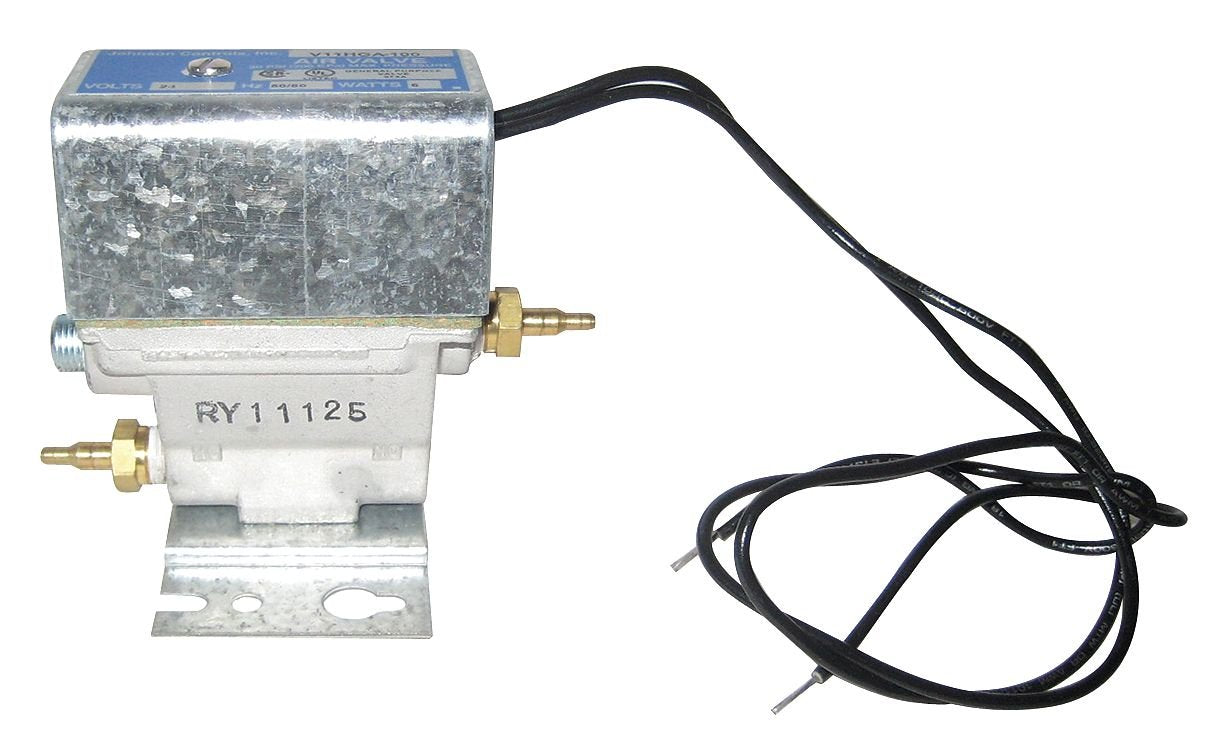

Johnson Controls V11HAA-115 Series V11 Three-Way Solenoid Air Valve With Grounding Lug 110/120V

Product Description

The Johnson Controls V11HAA-115 Series V11 Three-Way Solenoid Air Valve is designed for applications requiring an electrical circuit to operate a pneumatic control device. This solenoid valve includes an internal grounding lug for added safety and reliability.

• Two-position action
• Three piping connections: N.O. (normally open), N.C. (normally closed), COM (common)
• Operates in any position

Product Highlights

This Johnson Controls V11HAA-115 Series V11 solenoid valve features an internal grounding lug for enhanced safety. It is suitable for industrial applications requiring precise air control and monitoring, such as air compressors, pneumatic machinery, and HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V11HAA-115

Technical Specifications

• Voltage: 110/120V
• Frequency: 50/60 Hz
• Power: 3 watts
• Connections: 1/4 inch barb
• Installation Orientation: Operates in any position
• Control Air Pressure: 0 to 25 psi
• Max Air Pressure: 30 psi
• Air Consumption: 1.5 cfm
• Temperature Range: 32 to 104 degrees Fahrenheit
• Agency Compliance: UL
